Op-amp low-pass/high-pass analysis

Understanding op-amp filters with poles and zeros.

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):

CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor

Open in the editor and run the frequency domain simulation.

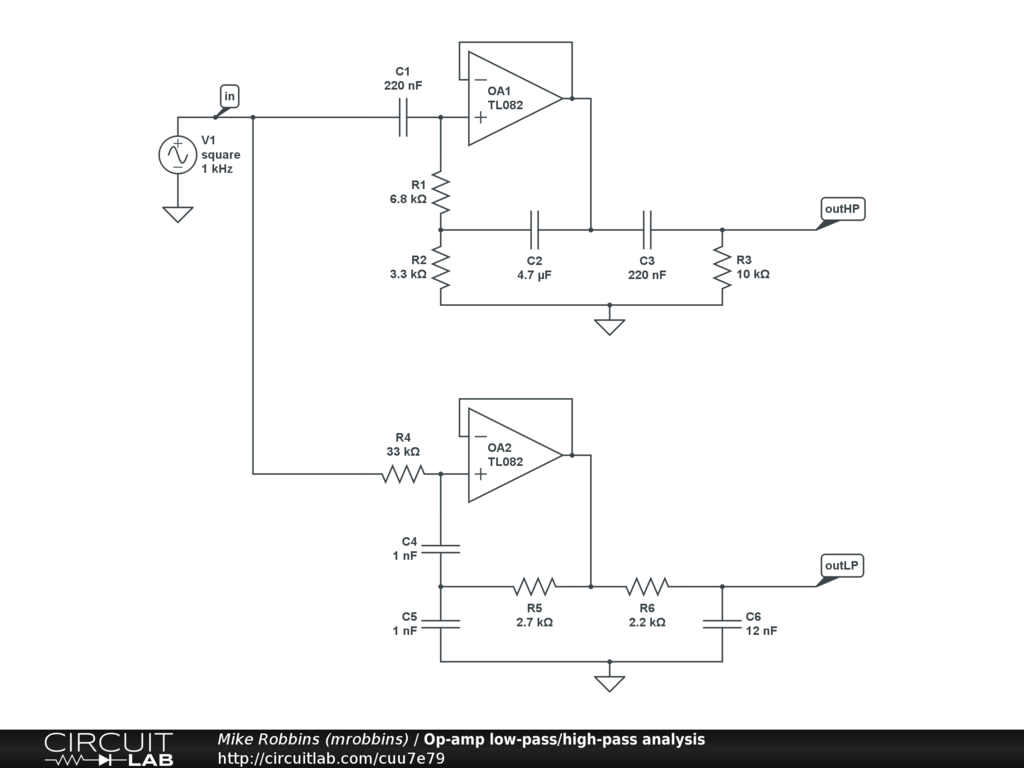

Hard to "eyeball" the filter response / frequency because of the dominant zeros introduced by C2 and C4.

No comments yet. Be the first!

Only the circuit's creator can access stored revision history.

Op-amp low-pass/high-pass analysis PUBLIC
