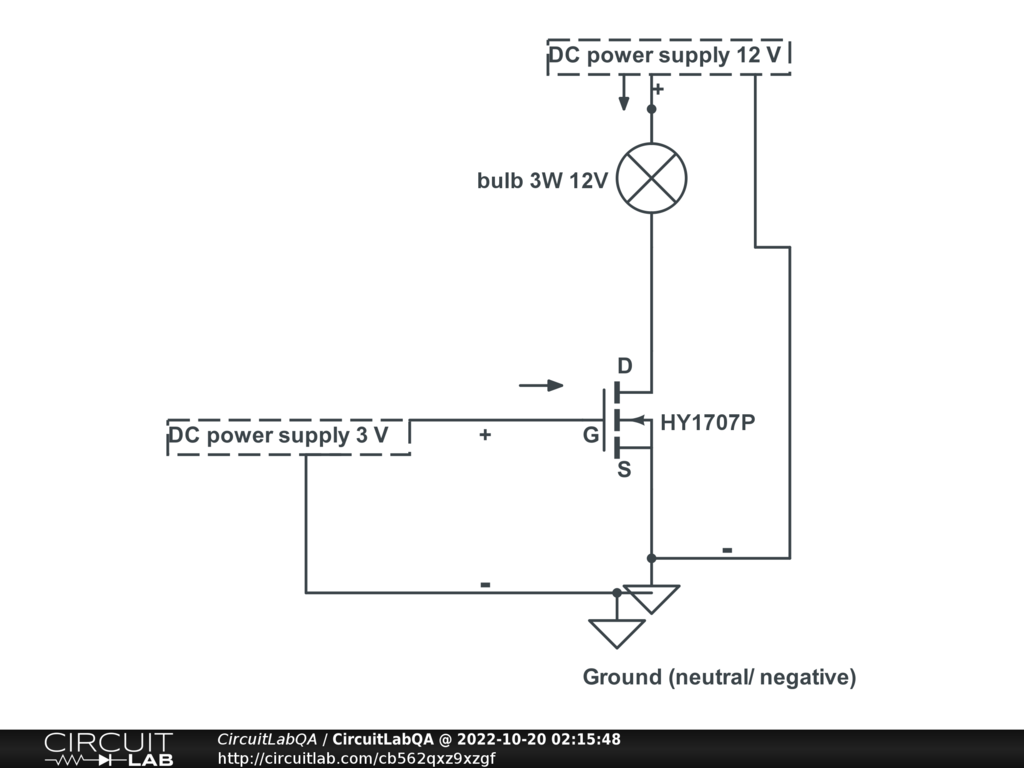

I am trying to use an HY1707P MOSFET. I connected a 3W DC bulb load with the drain where I provided 12 V and on the gate I provided 3V. Two separate dc power supply is being used for 12 V and 3V. But the bulb turns on, as usual, with no effect on the gate. I was looking forward to regulating the gate voltage to turn on the bulb. Could you please share why it is not working and what the actual circuit be like? My circuit design is added here. Thank you. |
October 20, 2022 |
No answers yet. Contribute your answer below!
