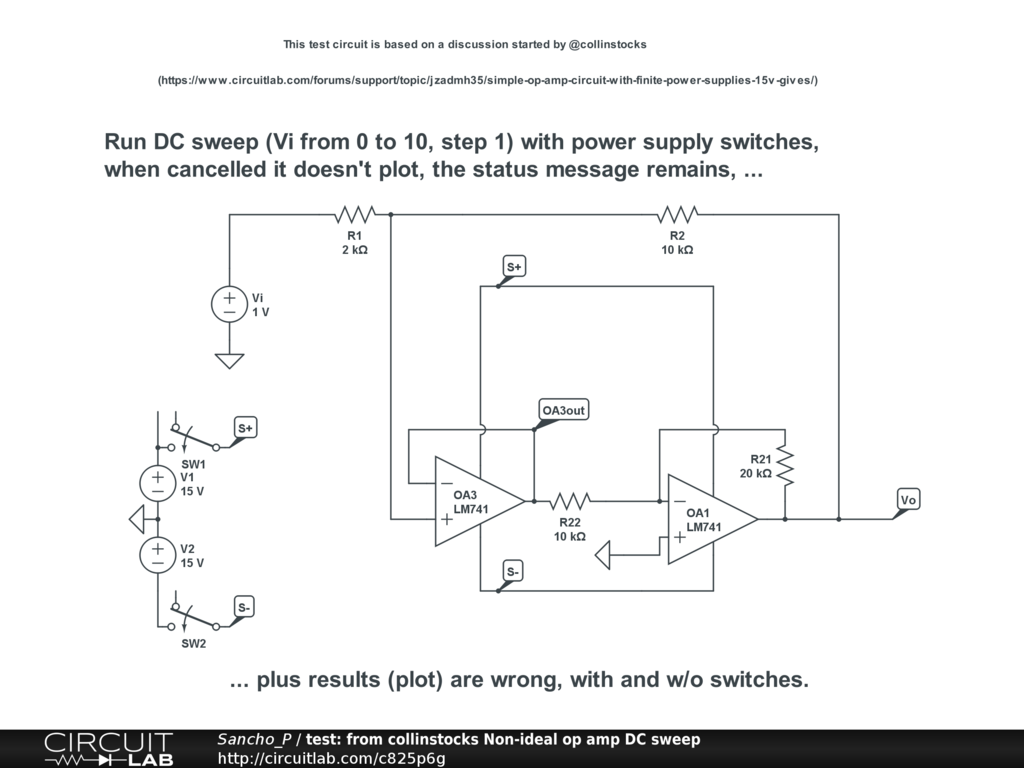

1) Run DC Sweep and cancel at 20% it doesn’t plot, the status message remains just sitting there - compare that to the TDS “Cancel” (which is pretty useful by displaying partial results). 2) Using the switches to ramp up the op amp’s power supply the example’s plot is wrong. 3) When the switches are bypassed the solver’s result is wrong, too. Initial conditions (?) must not be part of the result in DC sweep. If circuits (e.g. with op amps) can’t be used in the DC Sweep the solver must throw an error instead of presenting false results. Regards, Sancho |
by Sancho_P
April 05, 2013 |
