I am having a tough time with this software that really is not good for designing or substuting components. I cannot drag the components from one place to another on this. I am having a tough time. |
by gccradioscience
October 08, 2012 |
Could you give the guys at CL a little more information about your problem? Which browser? Which version? Which OS? A description of exactly what you are doing to help reproduce the problem? An example circuit? Please see Bug reports in: https://www.circuitlab.com/forums/support/topic/8s9n9hav/how-to-use-the-circuitlab-support-forum/ |
by signality
October 09, 2012 |
the best browser is firefox (most updater dosent matter) and all u do is click it if it turns gray then move mouse over builder area and click to place |
by Giantawesomeep
October 09, 2012 |

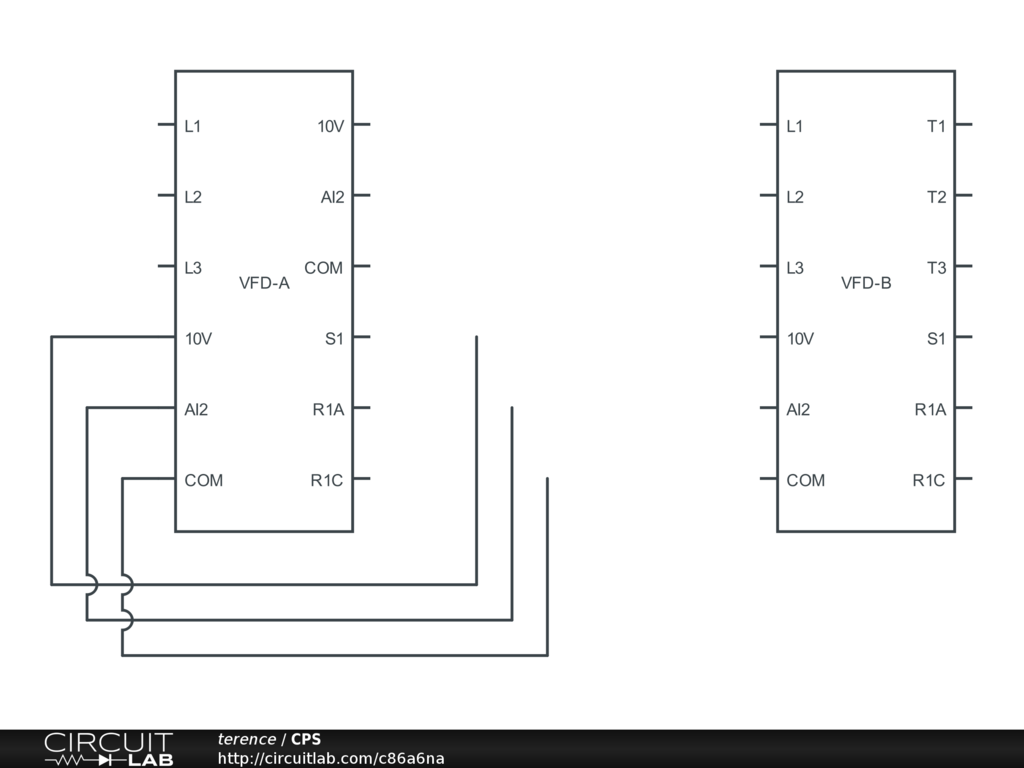

Sorry to rez an old thread but this happens to me too.
Steps to Reproduce: Click on WIRE and start connecting nodes. Components will subsequently be immovable. New components can be dropped but not moved. |
by terence
January 30, 2013 |
Does it do the same thing in Chromium? I had a not entirely unrelated problem on a Toshiba Satellite L500 with Radeon 4500 graphics using the fglrx driver in Kubuntu 12.04. With Chrome and Chromium, the CL Editor window would fragment. With FireFox 16, 17 & 18 it was fine. An update to Chrome magically fixed it (though I've not tried Chromium again to see if that's been updated/fixed). |
by signality
January 31, 2013 |
Apologies, I'm using Chromium, not Chrome. Hmm, I don't really see any graphical weirdness. Just that when I hover over a component, the cursor turns into a hand, but dragging it doesn't do anything. |
by terence
January 31, 2013 |
