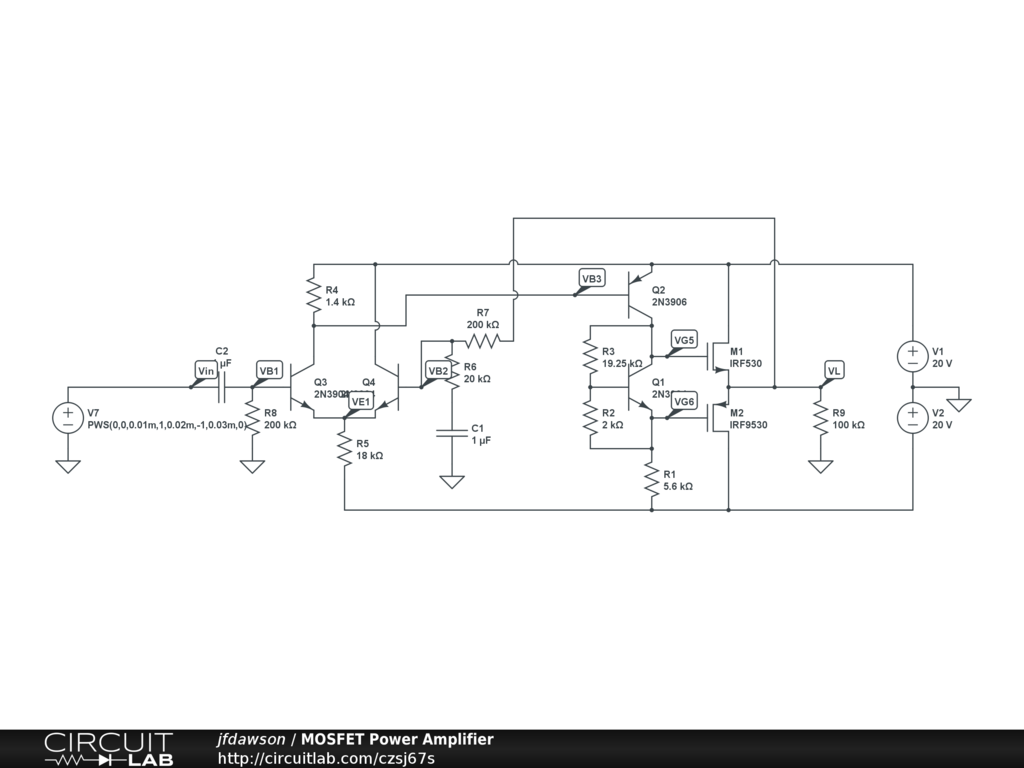

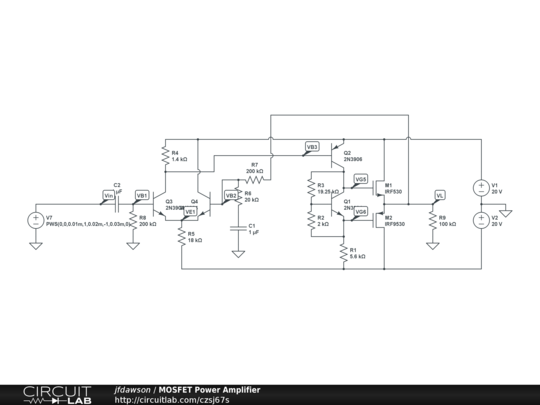

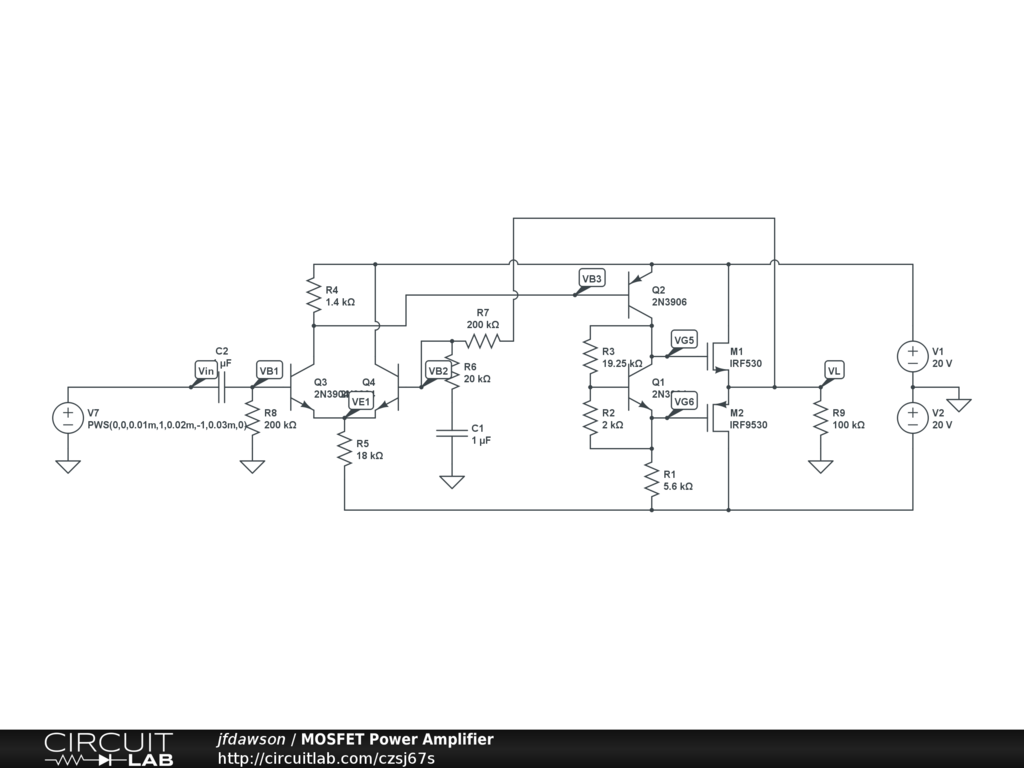

MOSFET Power Amplifier

A simple push-pull class AB MOSFET power amplifier.
Barely stable to show need for compensation.
