VU Meter with LEDs

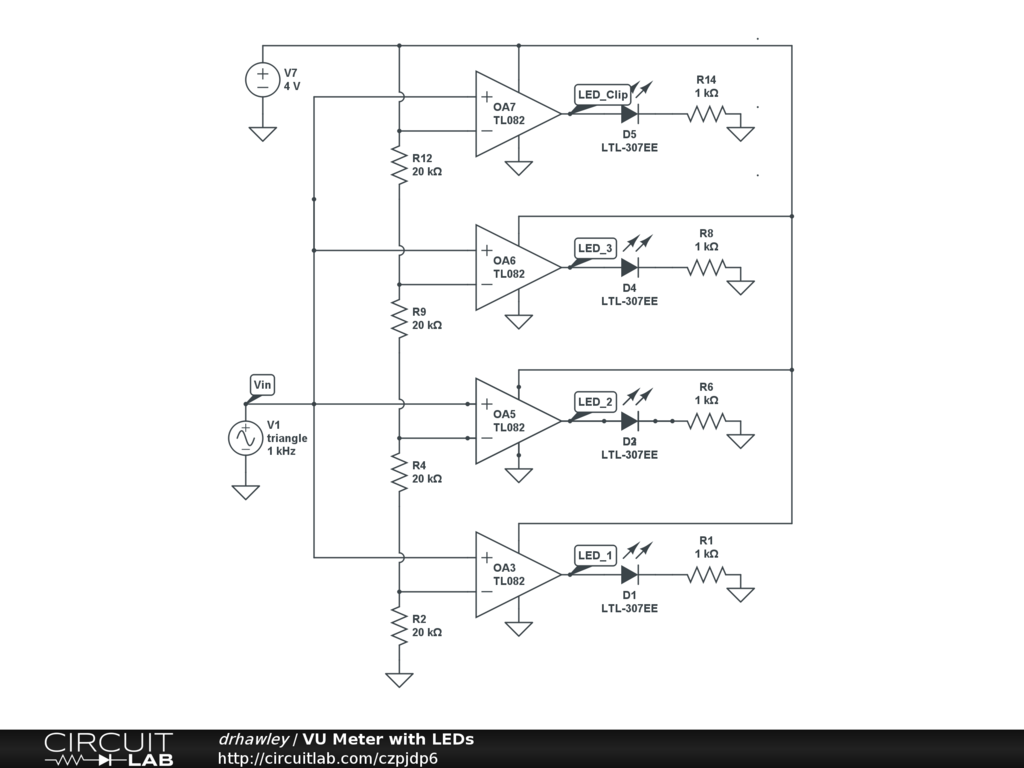

A stack of comparators can be used to make a little row of LEDs for a visual meter.

Click "Run Simulation" and then Time Domain...

Watch the different LEDs "turn on," graphically, as the input ramps up... and then back down.

Copy and paste the appropriate tags to share.
