Hi Joshua!

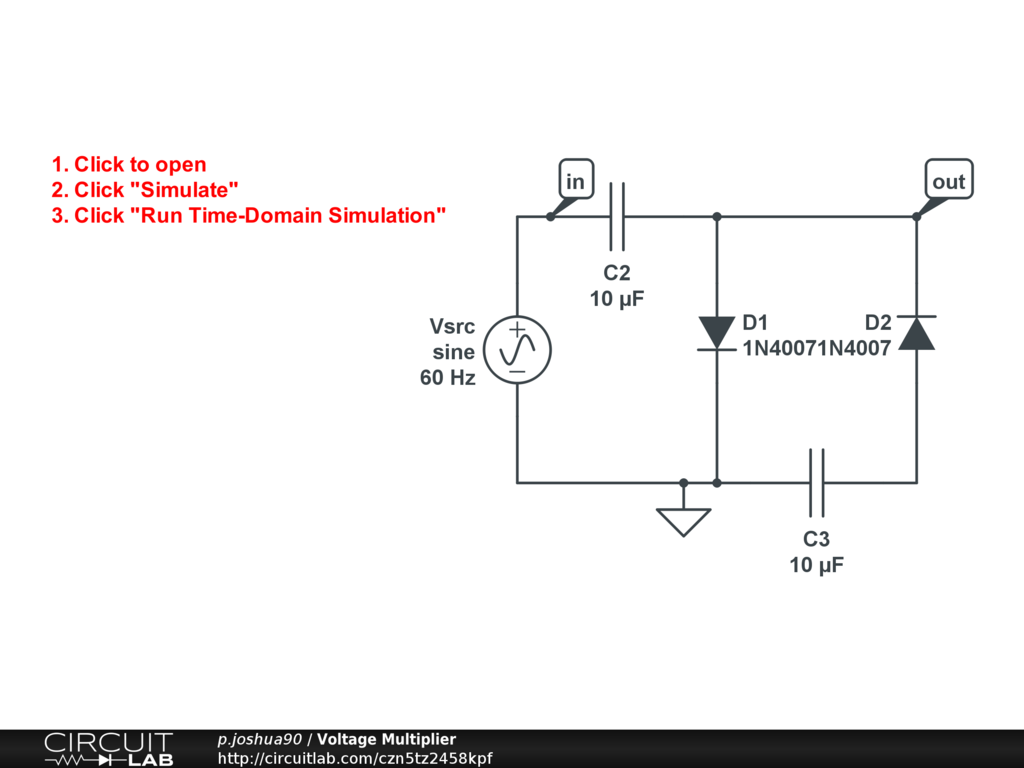

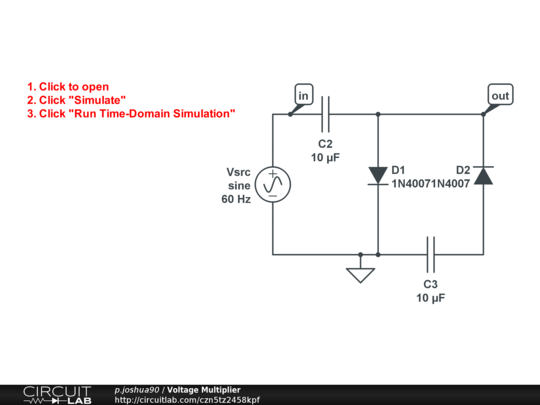

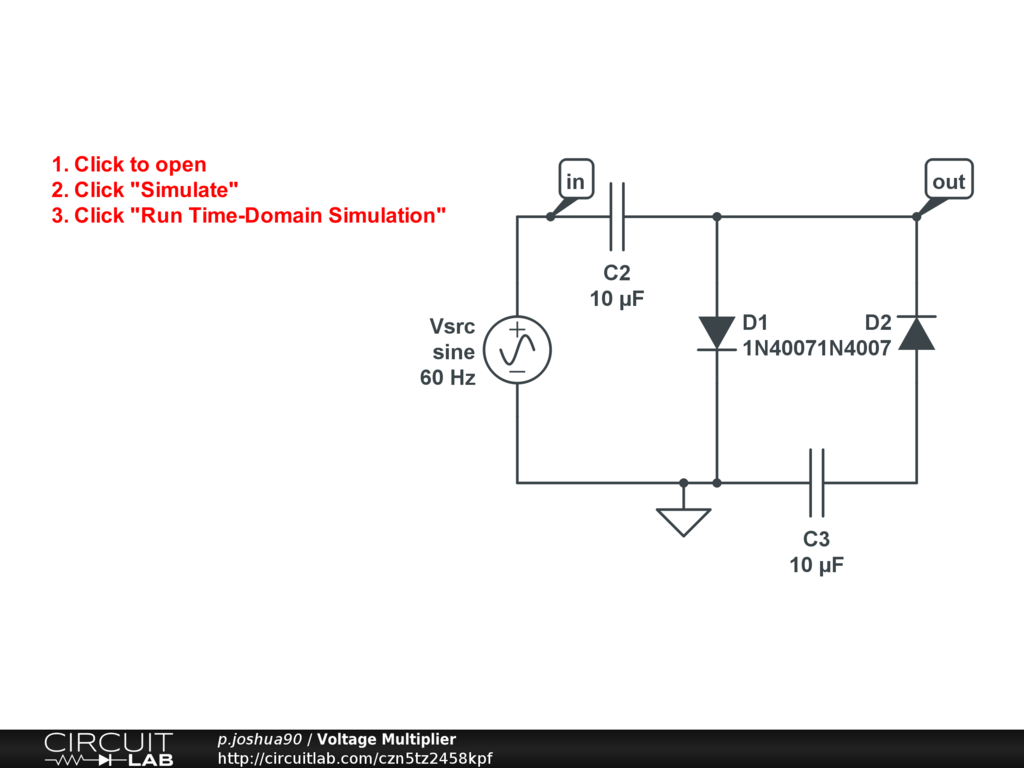

Pretty cool circuit. You're almost there to a voltage multiplier, but not quite yet. The top-half of your circuit (where nodes "in" and "out" are) is the AC component. The bottom-half is where the DC component lives. You should move node "out" to the bottom-right corner (on the anode-side of D2) and re-run your simulation to see what you get.

Also, the way you have your diodes means you are creating a negative voltage DC power supply. Flip the direction of each diode and you'll have a positive voltage DC power supply.

Good luck!
