MaxPwrTransfer

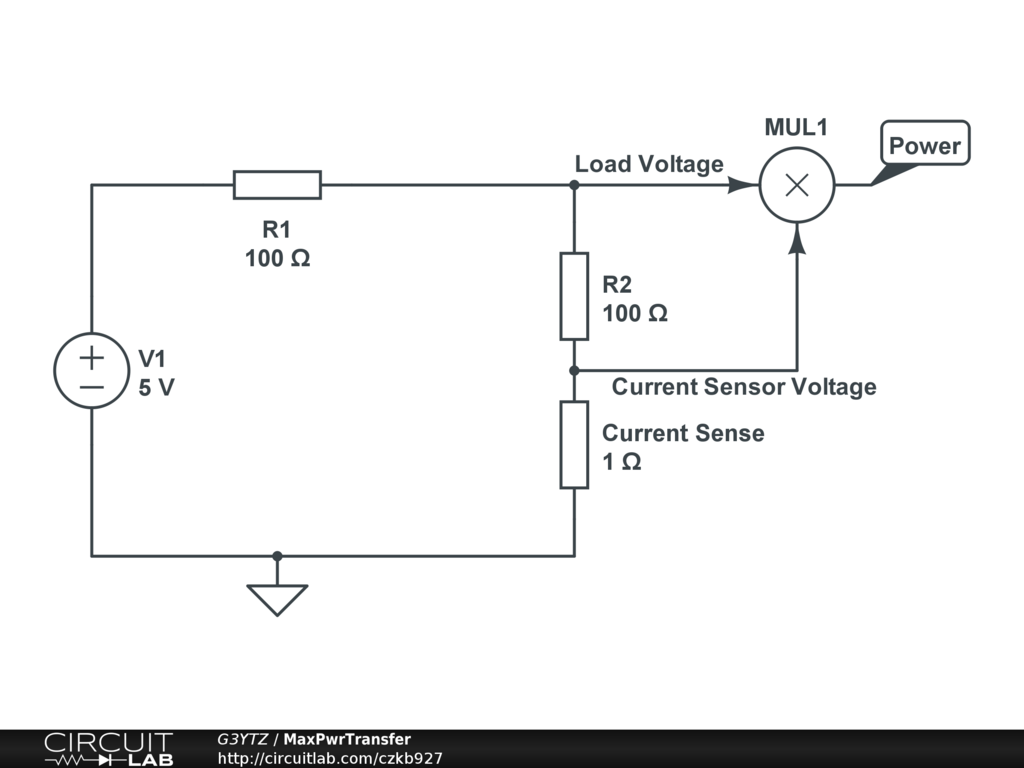

Run DC sweep to plot power as a function of the load resistor R2. There will be a small error due to the current sense resistor.
