Sportech HPEP PUBLIC

Created by
Created March 02, 2021
Last modified March 10, 2021
Tags No tags.

Summary

Not provided.

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):


CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor


Description

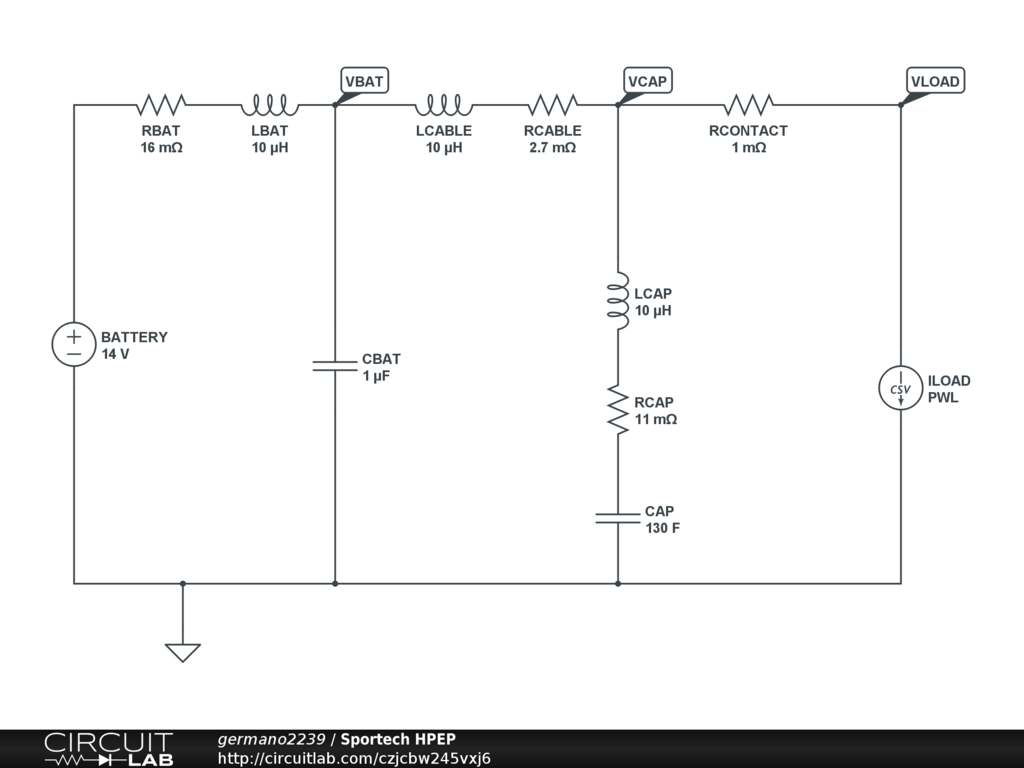

A simplified model of a car battery with a high current load attached, to evaluate the effects of a supercapacitor in parallel close to the load
