Description

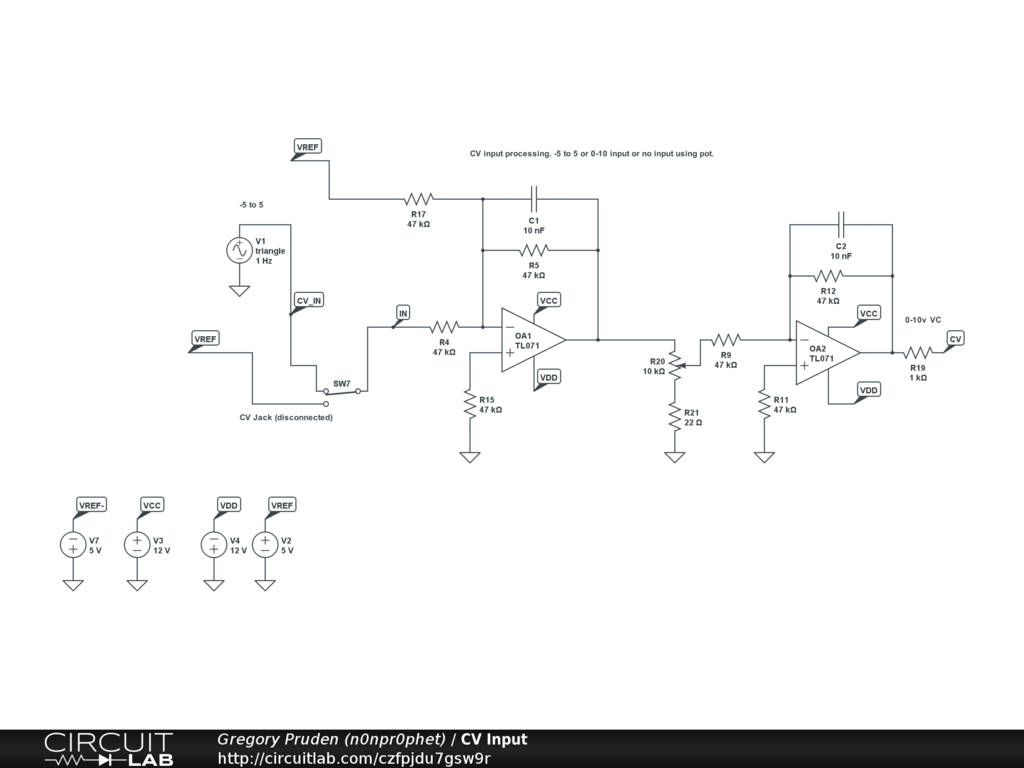

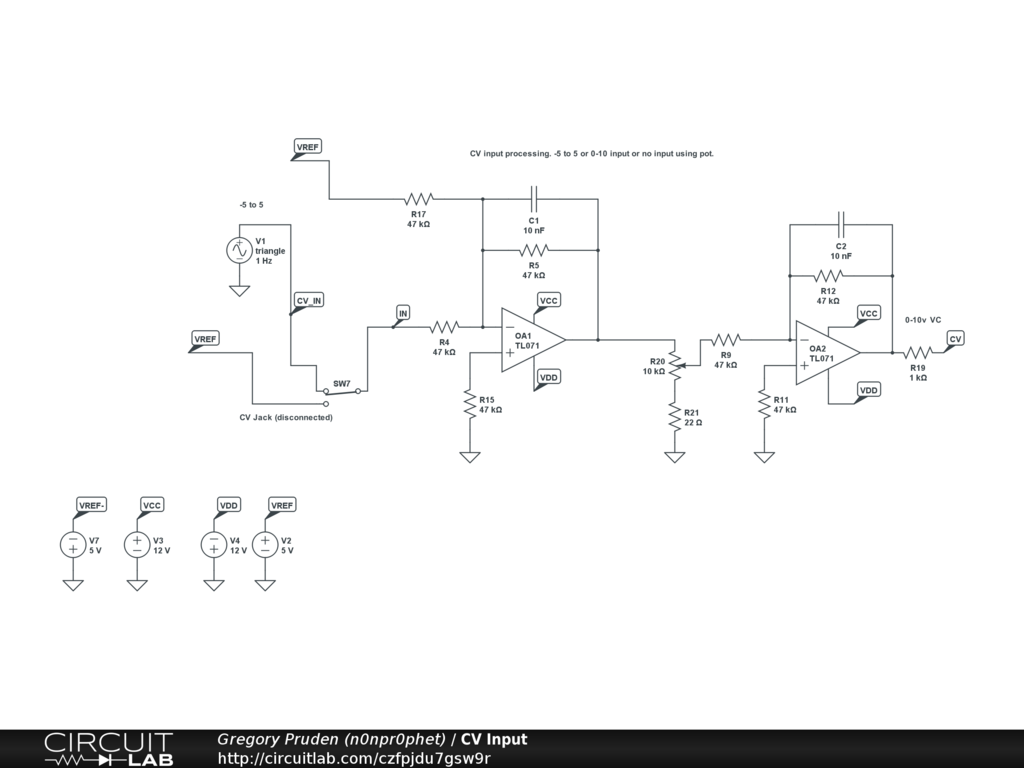

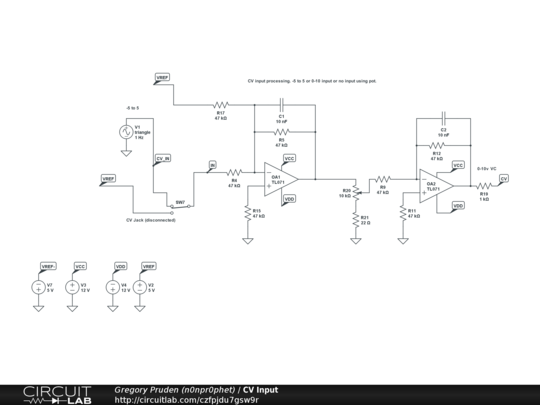

This is the control voltage input for the VCLFO circuit here https://www.circuitlab.com/circuit/fd8rf678z4v6/vclfo/ It accepts a -5 to 5 volt control voltage and converts it to 0 to 10 input the VCLFO. I did this so that the output of one VCLFO could could be used to control another one. I am still ironing out this one.
