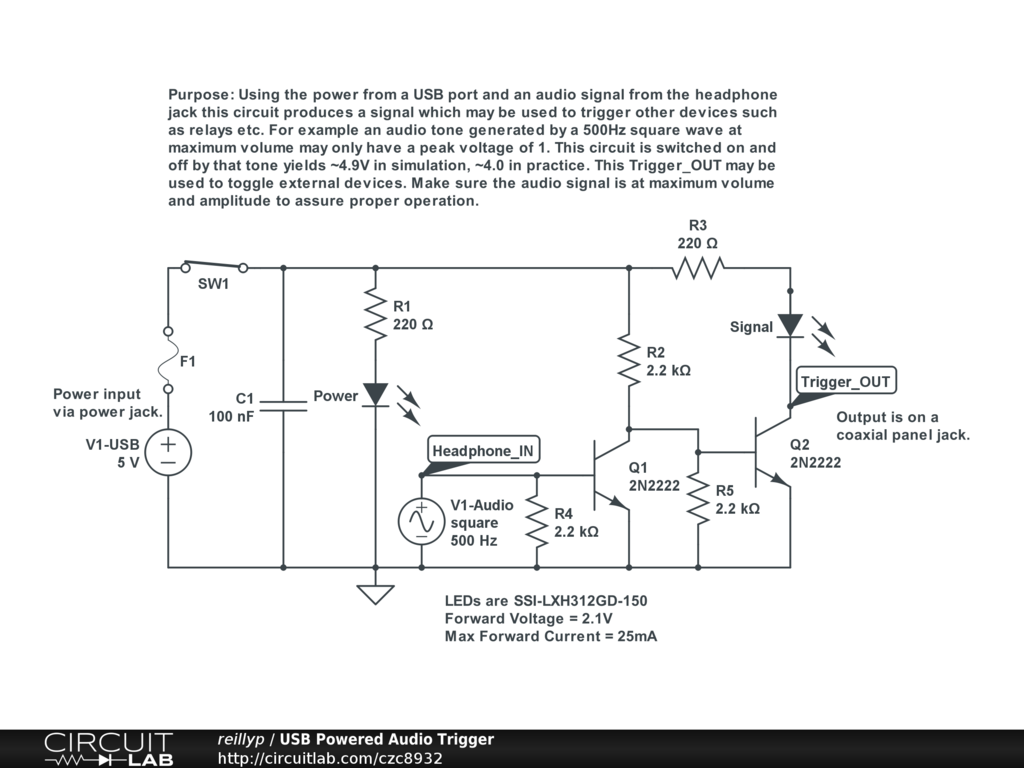

Purpose: Using the power from a USB port and an audio signal from the headphone jack this circuit produces a signal which may be used to trigger other devices such as relays etc.
