4-Bit Adder as Incrementing Counter

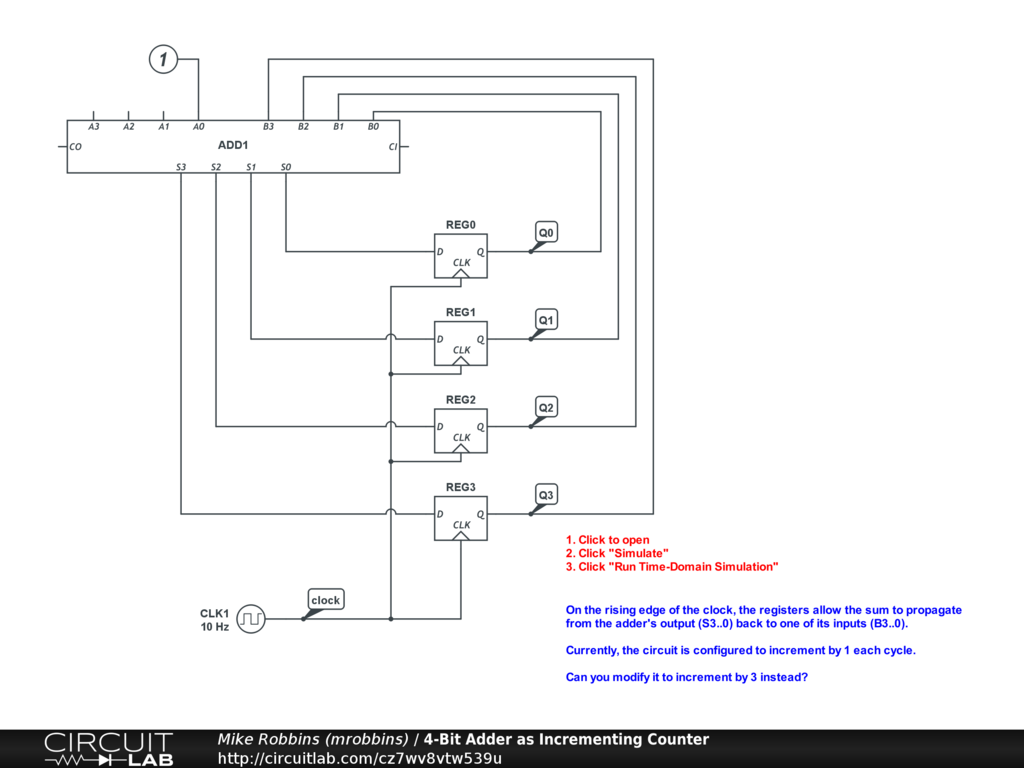

A 4-bit adder, plus four clocked digital registers, are configured to create an incrementing counter.
