Cap Dropper Power Supply PUBLIC

Created by
Created February 13, 2013
Last modified February 13, 2013
Tags power-supply

Summary

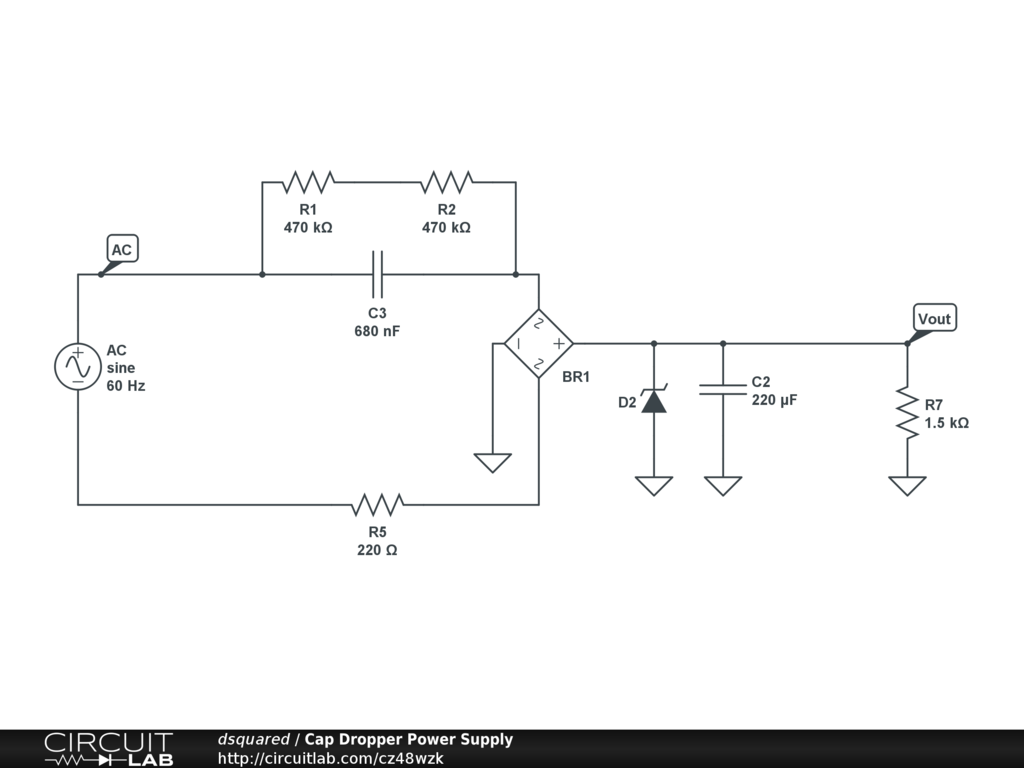

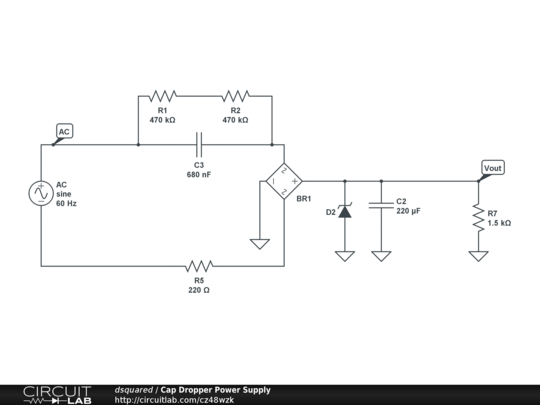

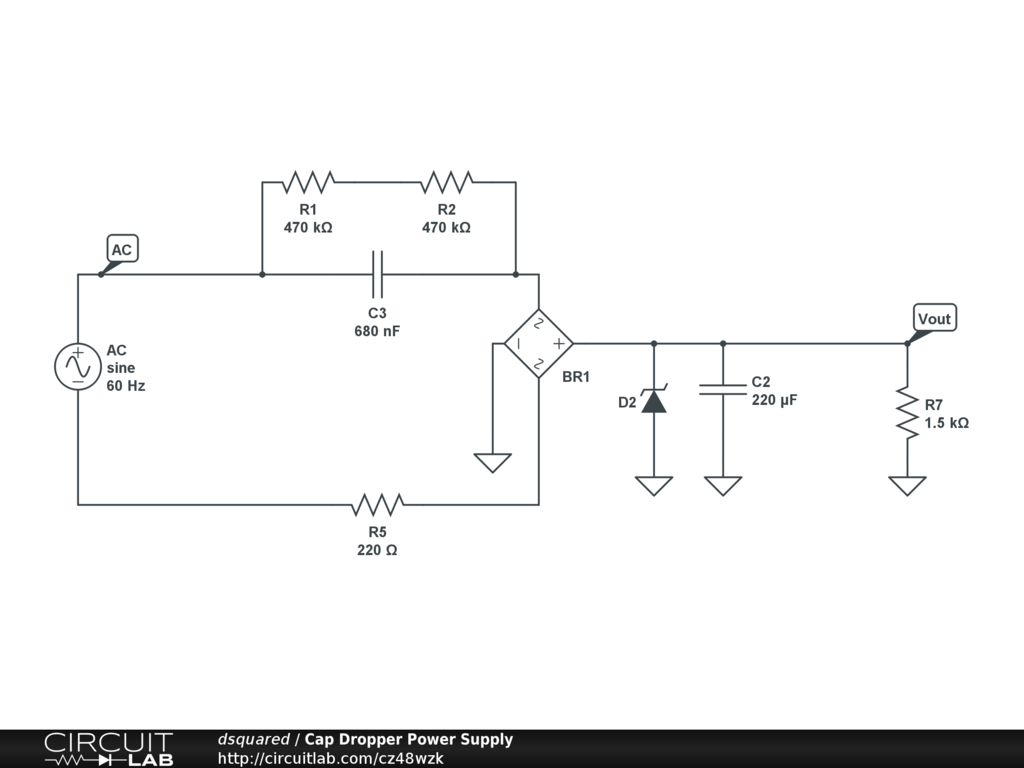

A simple Capacitor dropper power supply. 24V output.
