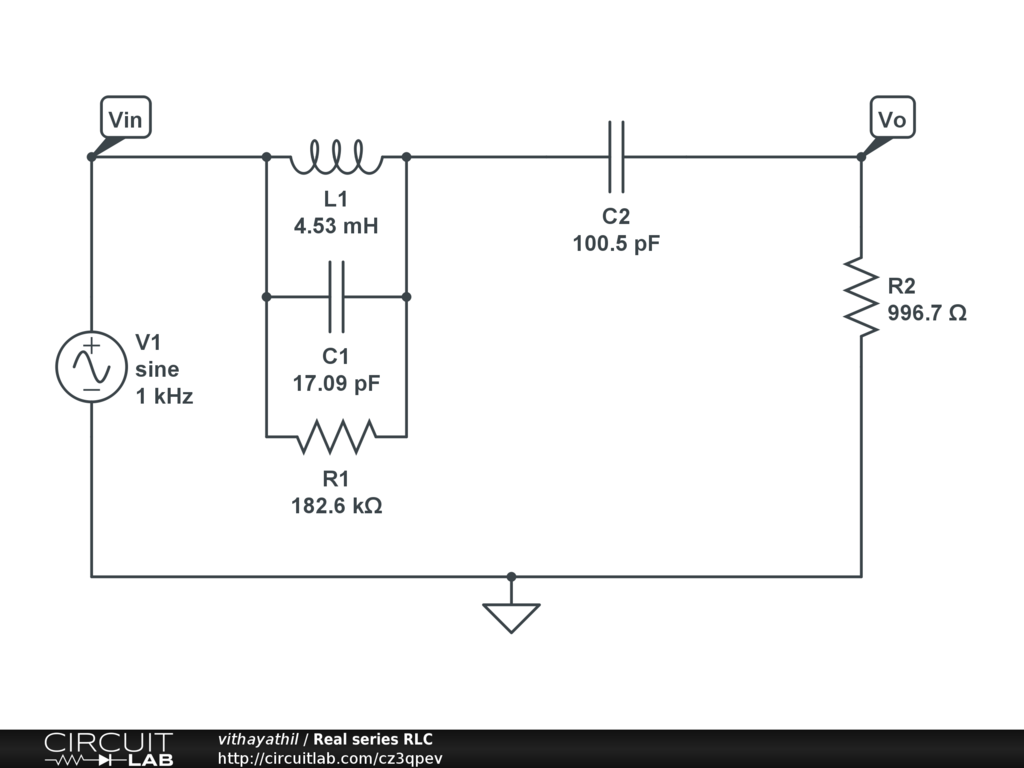

Series RLC circuit for lab L. I used my component values for the circuit. The coil is self resonant at 572 KHZ, giving C(L) = 17.09pF. For R1=(w*L)^2/Rcoil, I used Rcoil of 200 Ohms at 220 KHZ. This is a rough estimate from Vo(w0) and could be determined more precisely. In simulate mode run frequency domain analysis. The resonant frequency is lowered from 235 KHZ for an ideal L of 4.53mH to 219 KHZ, matching measured value. |
