Summary

Not provided.


Description

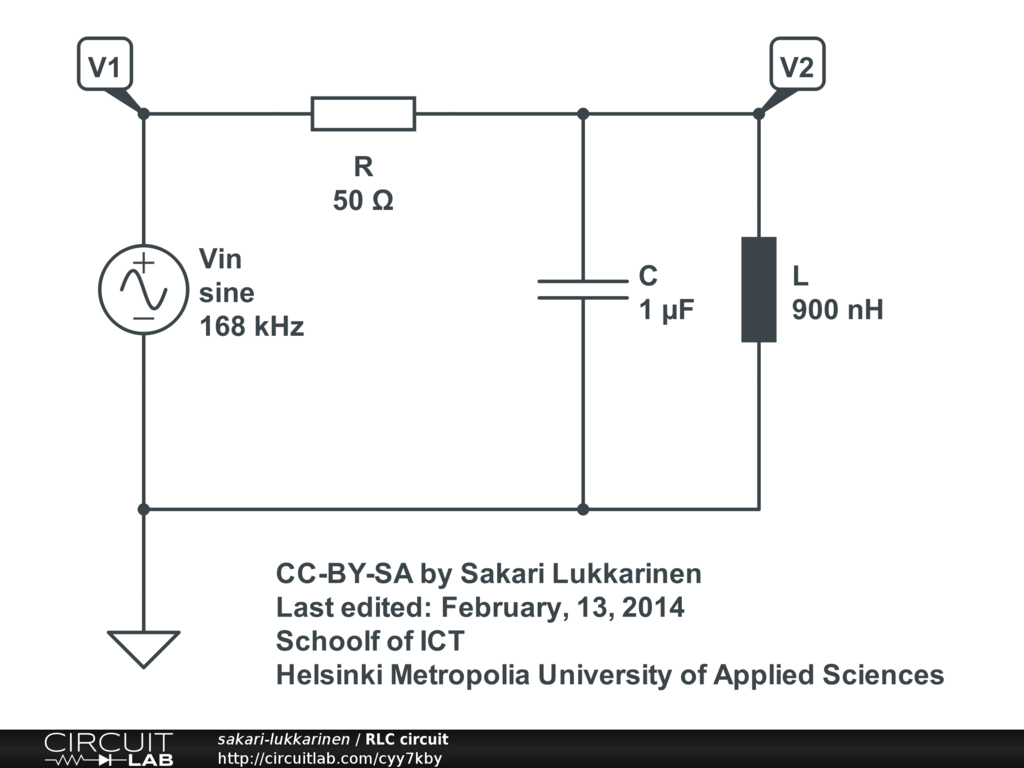

Simple LC circuit showing the resonance at frequency $ f = 1/(2*pi) * \sqrt{1/(L*C)}$

If you can measure the resonance frequency and you know the value for the capacitance, you can calculate the value for the inductance L:

L = 1/(C(2pi*f)^2)
