rail splitter PUBLIC

Created by
Created April 13, 2013
Last modified April 13, 2013
Tags No tags.

Summary

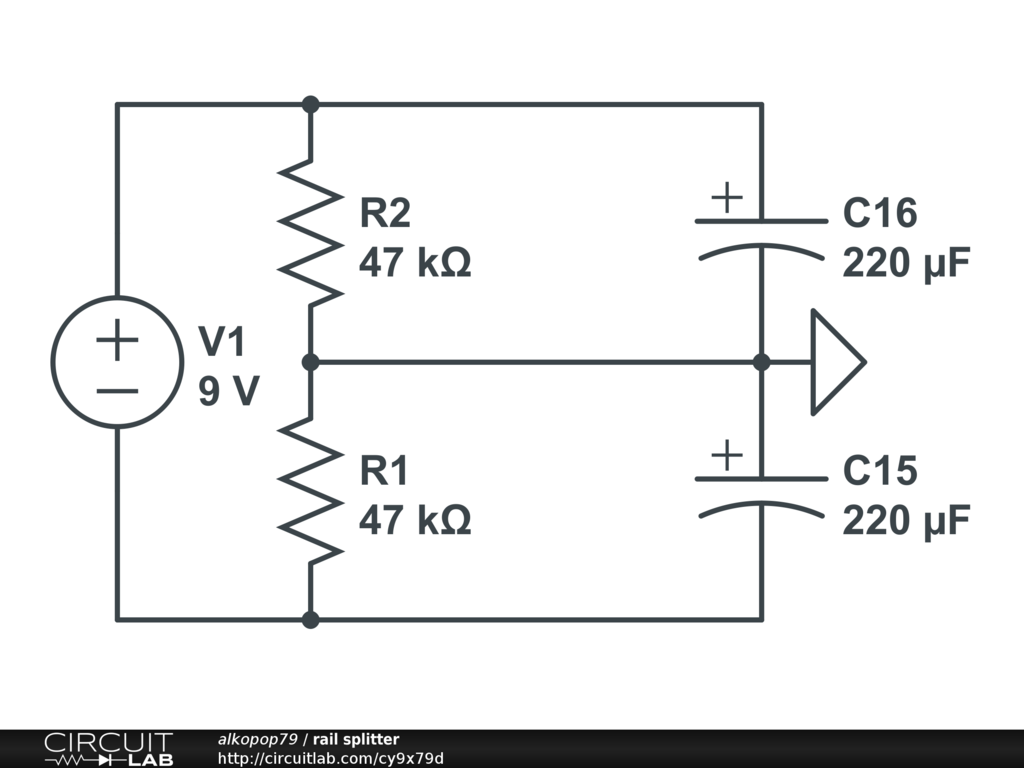

Simple rail splitter to get virtual ground.
