LED / photodiode with optical connection by CCCS

A CCCS (Current Controlled Current Source) can be used to simulate the optical coupling between an LED and photodiode.

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):

CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor

This circuit is in response to this forum post.

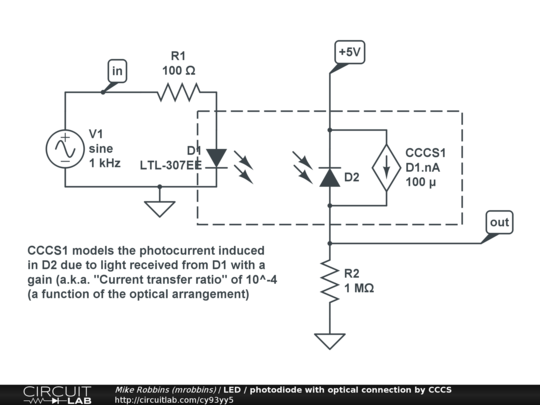

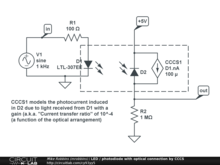

A CCCS in parallel with a photodiode can be used to simulate the connection between an optical transmitter and optical receiver.

Try the DC Sweep, as well as the Time-domain Simulation!

No comments yet. Be the first!

Only the circuit's creator can access stored revision history.

LED / photodiode with optical connection by CCCS PUBLIC
