Description

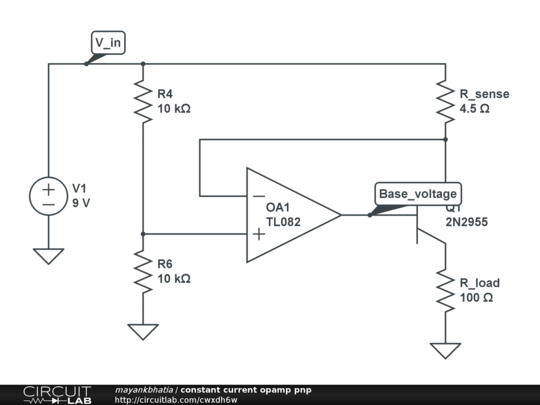

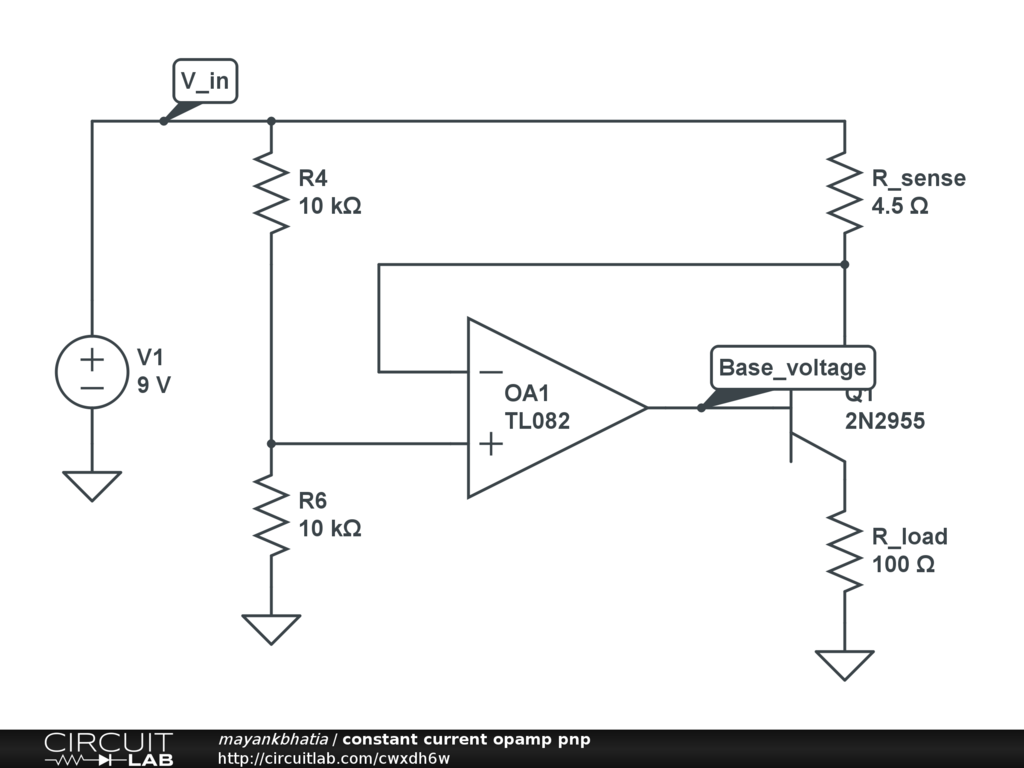

This one is copied from Art of Electronics. But the simulations dont show this to be constant current at all. I run a DC sweep with R5(Load) = 0 to 100 the current regulation fails for anything over 5ohm load.


Comments

Looks like you do not have enough V1 to ram 1 amp of current through a 100 ohm load. That would give you 100 volts.

You only have about 4.3 volts to work with. ( 9 volts - 4.5 volts across R_sense - 0.2 volts Q1 Vsat ).

As R_load goes over 4.5 V or so, Q1 will saturate full on, and no longer function as a current source.

by anubi
May 21, 2012

Whoops. Typo.

"As R_load goes over 4.5 V or so, Q1 will saturate full on, and no longer function as a current source."

Whoops.. 4.3 OHMS,

by anubi
May 21, 2012

You might like to have a look at:

and:

:)

by signality
May 22, 2012
