FRONT END MW Receiver PUBLIC

Created by
Created October 29, 2013
Last modified October 29, 2013
Tags No tags.

Summary

El circuito equivalente del FRONT END del receptor de MW

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):


CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor


Description

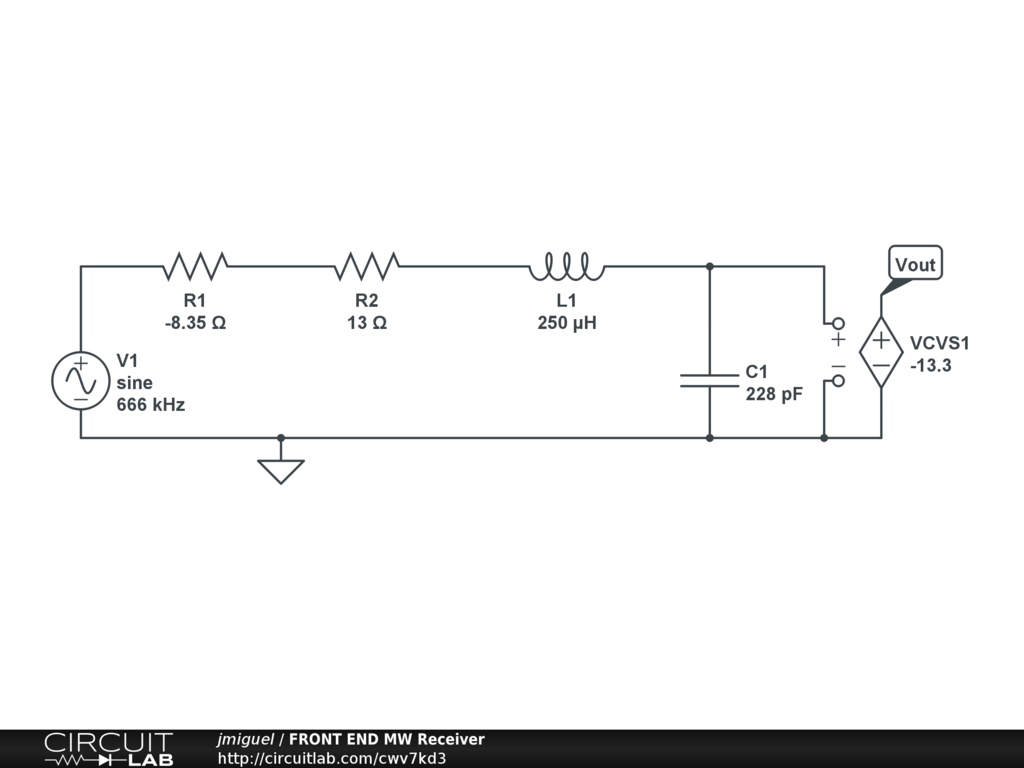

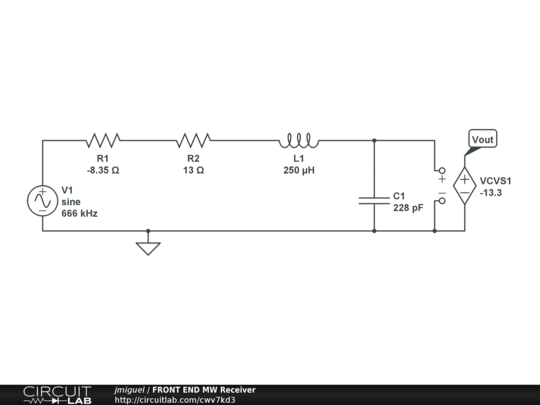

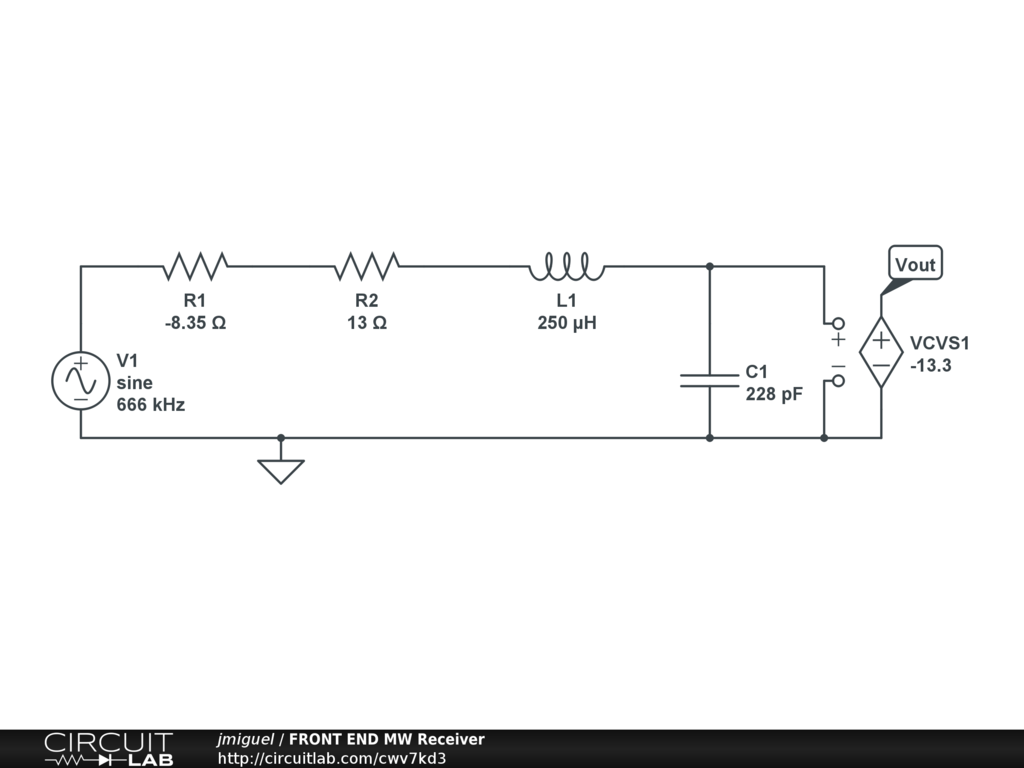

En el circuito equivalente del Front End del receptor,la resistencia de 13 ohm corresponde a la parásita de la bobina a 666KHz,La resistencia negativa corresponde al efecto de la realimentación positiva.El condensador de 228pF posibilita situar el pico de resonancia a 666KHz.La fuente controlada de -13.3 corresponde a K/n siendo K la amplificación del amplificador de alta frecuencia (80) y n es la relación de transformación 60/10
