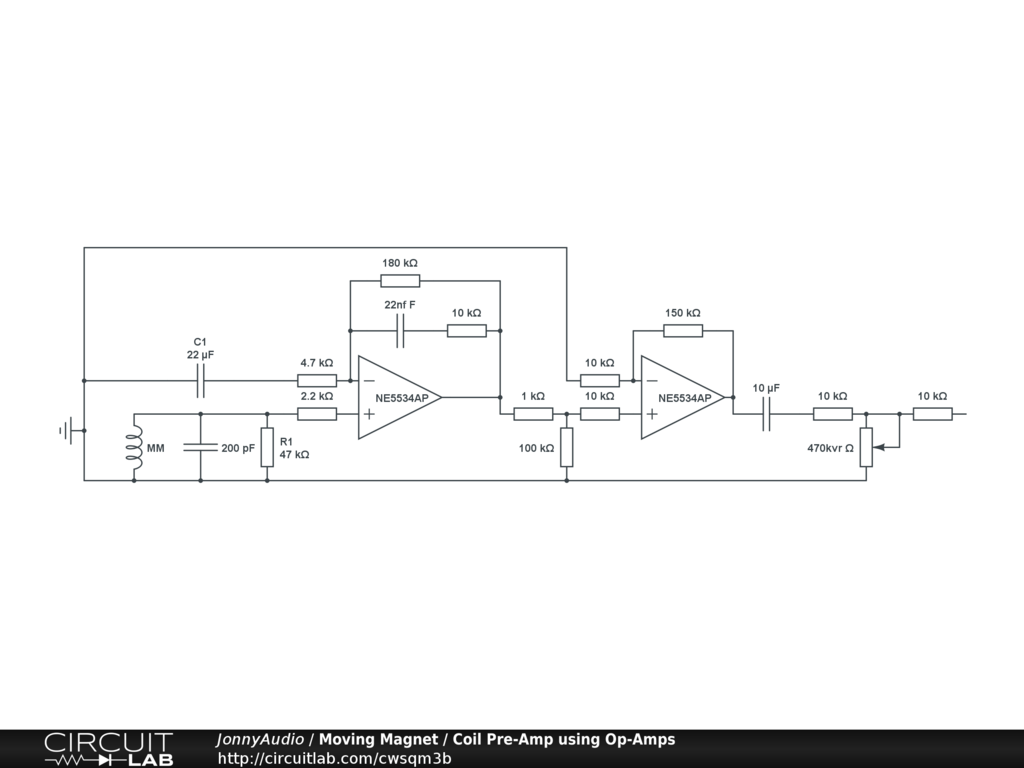

Moving Magnet / Coil Pre-Amp using Op-Amps PUBLIC

Created by
Created July 29, 2013
Last modified March 17, 2014
Tags No tags.

Summary

The Op-Amps on this should be high quality ones starting at NE5534 Op Amp & more expensive ones according to budget.
