RMS Voltmeter 01

Created by	signality
Created	August 06, 2012
Last modified	August 06, 2012
Tags	ammeter rms true-rms voltmeter

A way to simulate a true RMS voltmeter and a true RMS ammeter.

Simulate > Time Domain > Run Time-Domain Simulation

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):

CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor

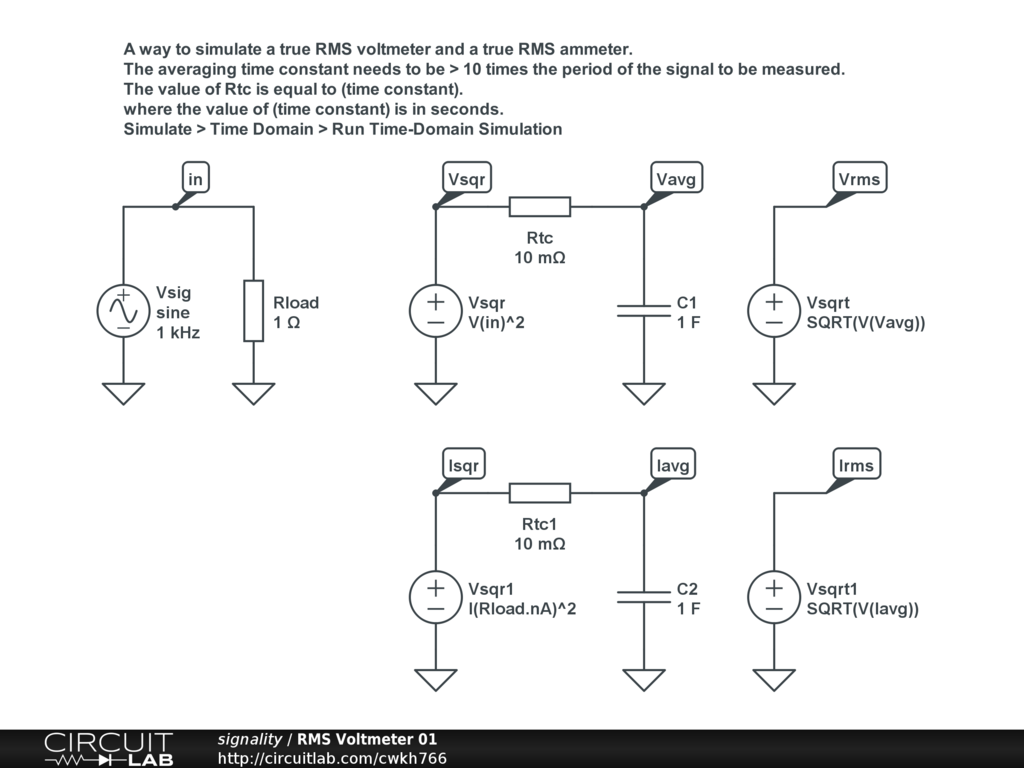

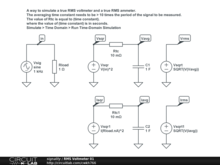

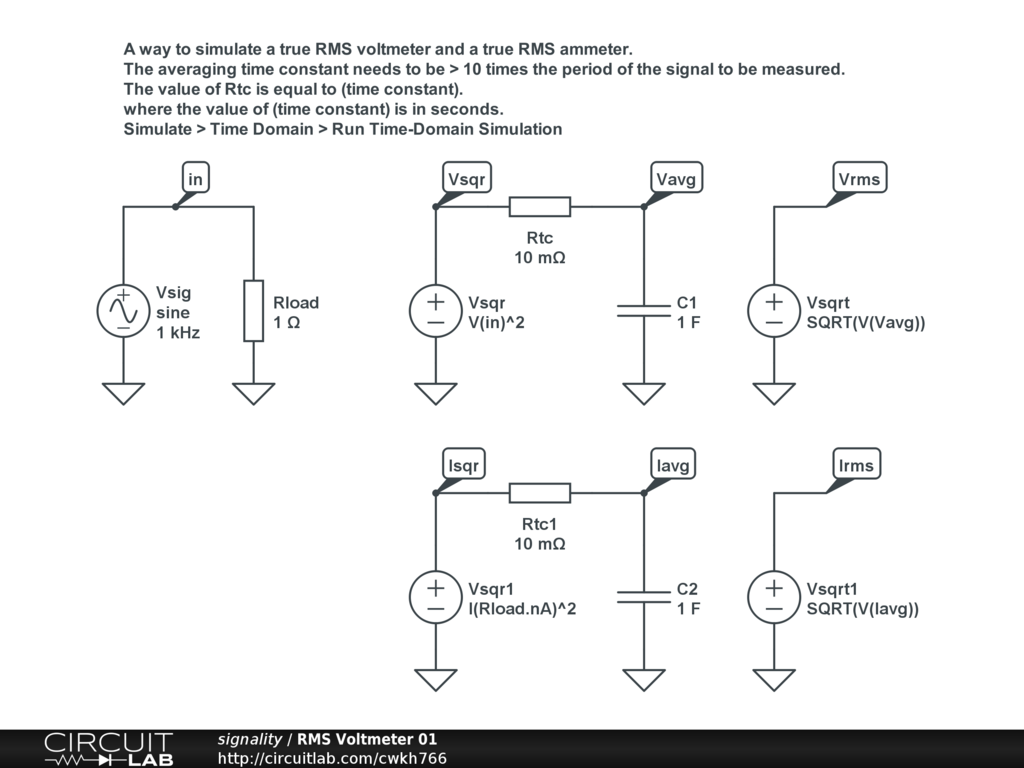

A way to simulate a true RMS voltmeter and a true RMS ammeter.

The averaging time constant needs to be > 10 times the period of the signal to be measured.

The value of Rtc is equal to (time constant).

where the value of (time constant) is in seconds.

Simulate > Time Domain > Run Time-Domain Simulation
