Twin-T Filter @ 60Hz PUBLIC

Created by
Created June 17, 2012
Last modified July 07, 2012
Tags No tags.

Summary

Not provided.

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):


CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor


Description

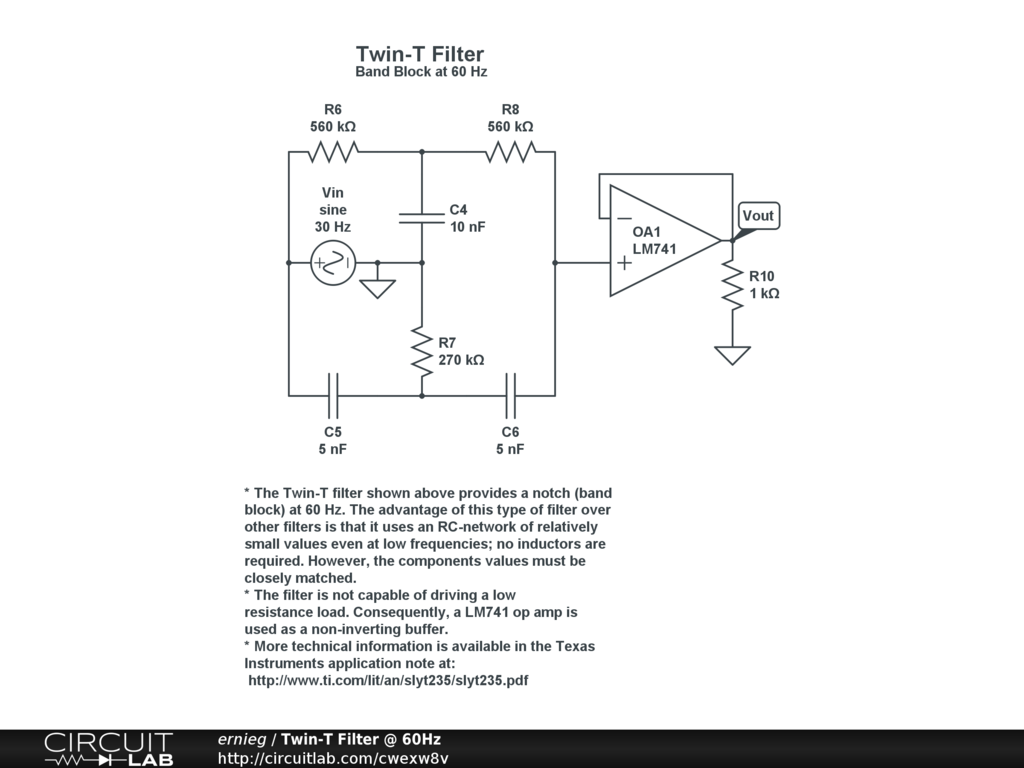

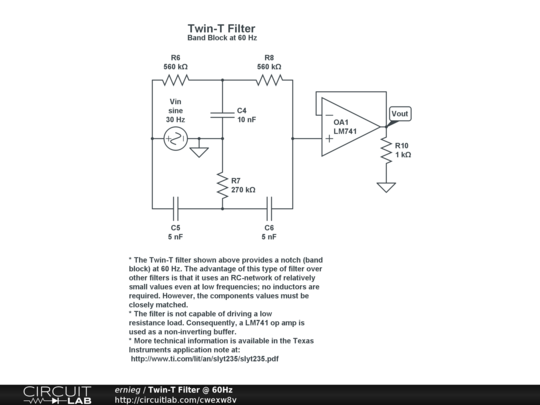

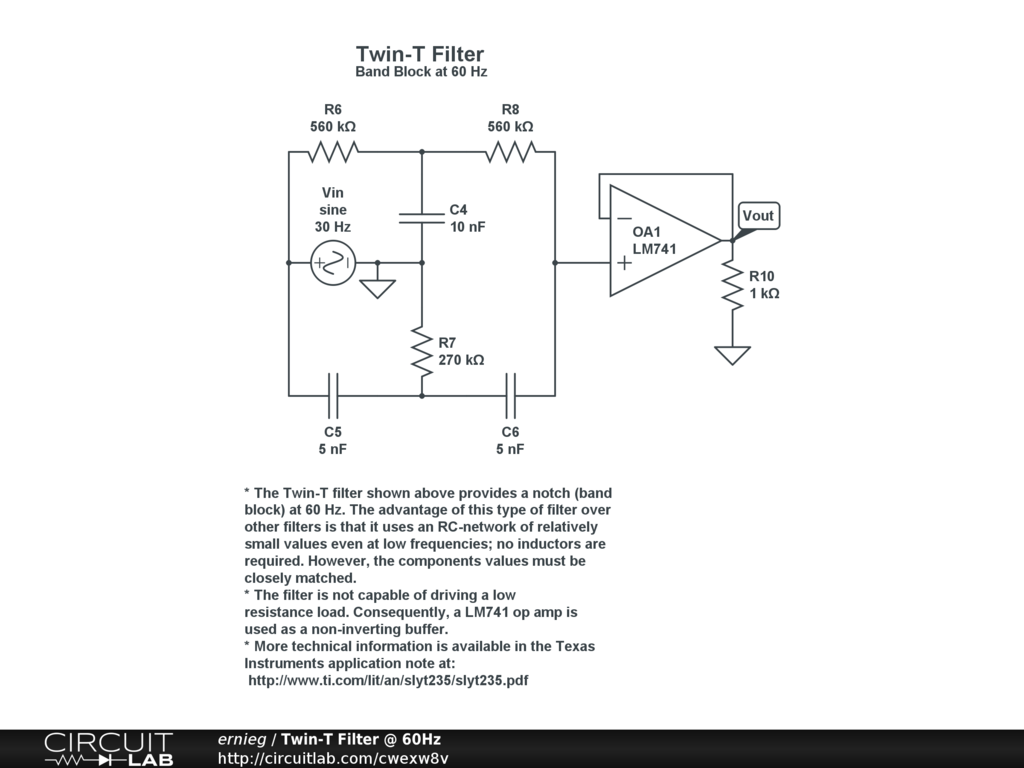

The Twin-T Filter is configured provides a notch (band block) at 60 Hz. It uses an RC-network; no inductors required. An op amp is used as a buffer between the notch filter and the load. The Frequency Domain simulation shows gain and phase over a range of frequencies.
