Strain gauge bridge biased

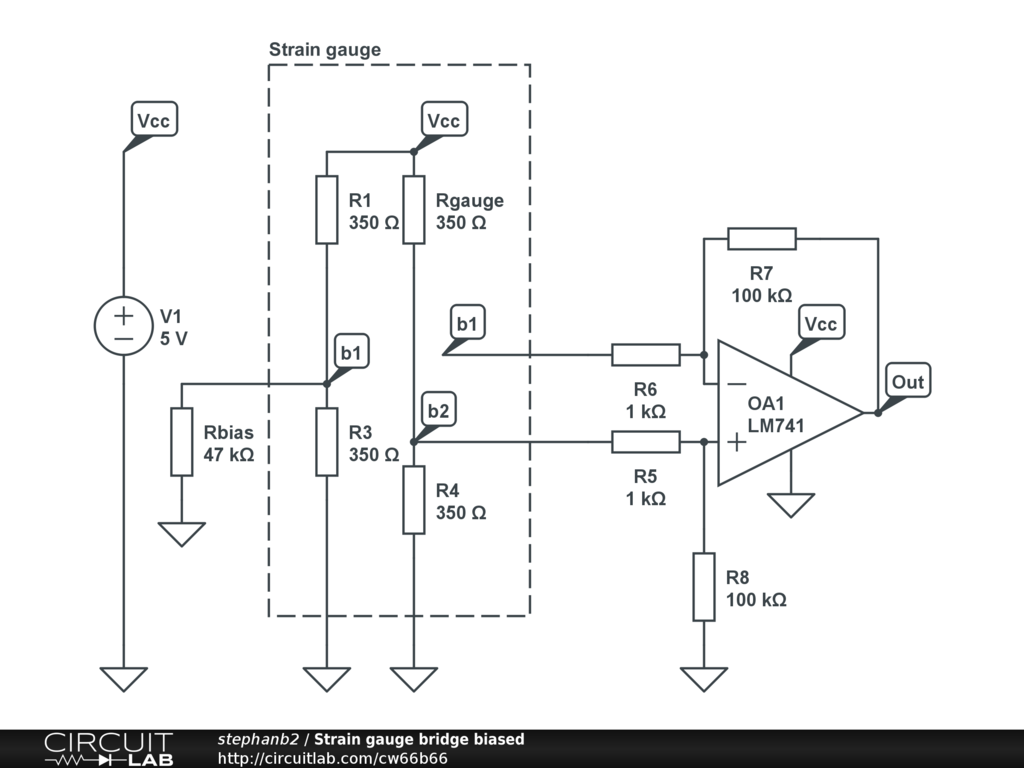

Single op-amp amplifier to adapt a quarter bridge strain gauge to the analog input of an Arduino micro controller.

Don't use this circuit for instrumentation, there is no signal conditioning for the gauge bridge and no temperature compensation.
