Quad diode PUBLIC

Created by
Created February 29, 2012
Last modified March 03, 2012
Tags No tags.

Summary

Quad diode position sensor.

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):


CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor


Description

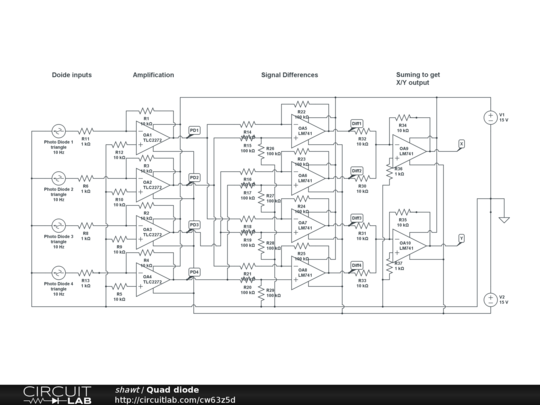

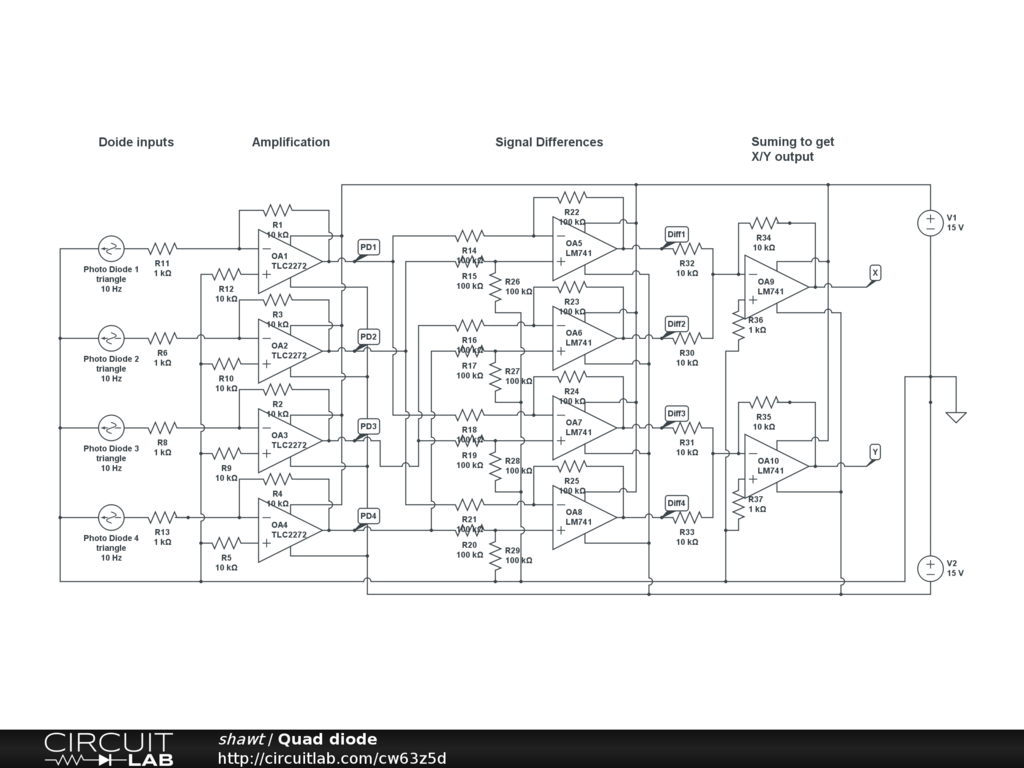

I am trying to build a circuit to read a quad diode position sensor. The inputs are on the left. The first stage amplifies the photo diode signals. The second stage compares the quadrants and the third stage sums the out puts to give an X Y signal.

Based on description in this link http://www2.bioch.ox.ac.uk/~oubsu/ebjknight/q4d.html

Comments

Looks good!
Avatar for DasBigL
by DasBigL
March 03, 2012
