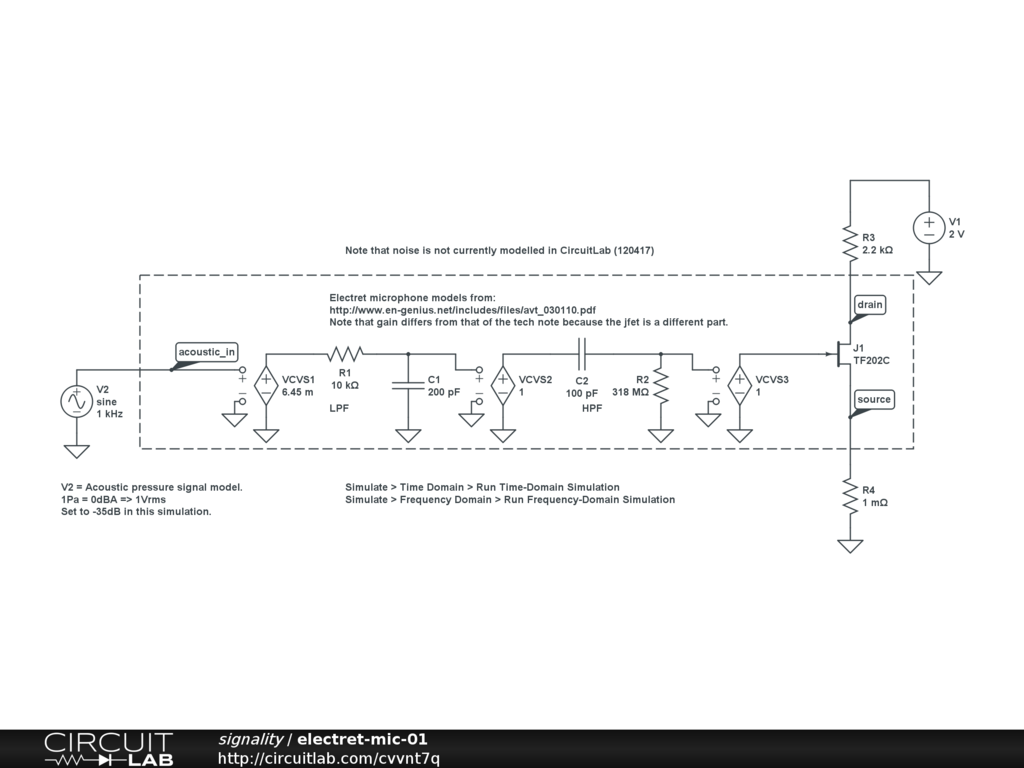

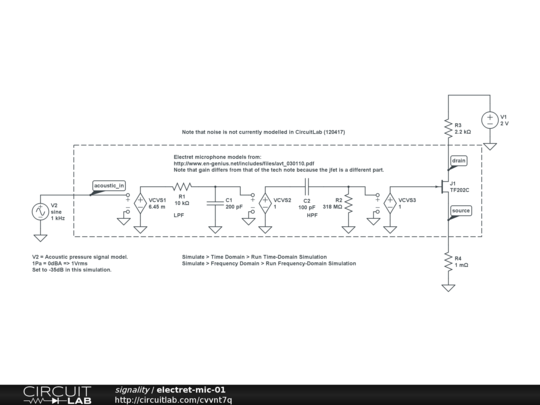

An electret microphone model from:
http://www.en-genius.net/includes/files/avt_030110.pdf
An electret microphone model from: http://www.en-genius.net/includes/files/avt_030110.pdf Note that gain differs from that of the tech note because the jfet is a different part. Note also that noise is not currently modelled in CircuitLab (120417)
