Guitar Buffer PUBLIC

Created by
Created May 02, 2023
Last modified May 05, 2023
Tags buffer   centaur   klon   microamp   mxr   op-amp   opamp   tl071

Summary

Simple buffer to convert high impedance guitar input to low impedance output (such as line-in on your computer)

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):


CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor


Description

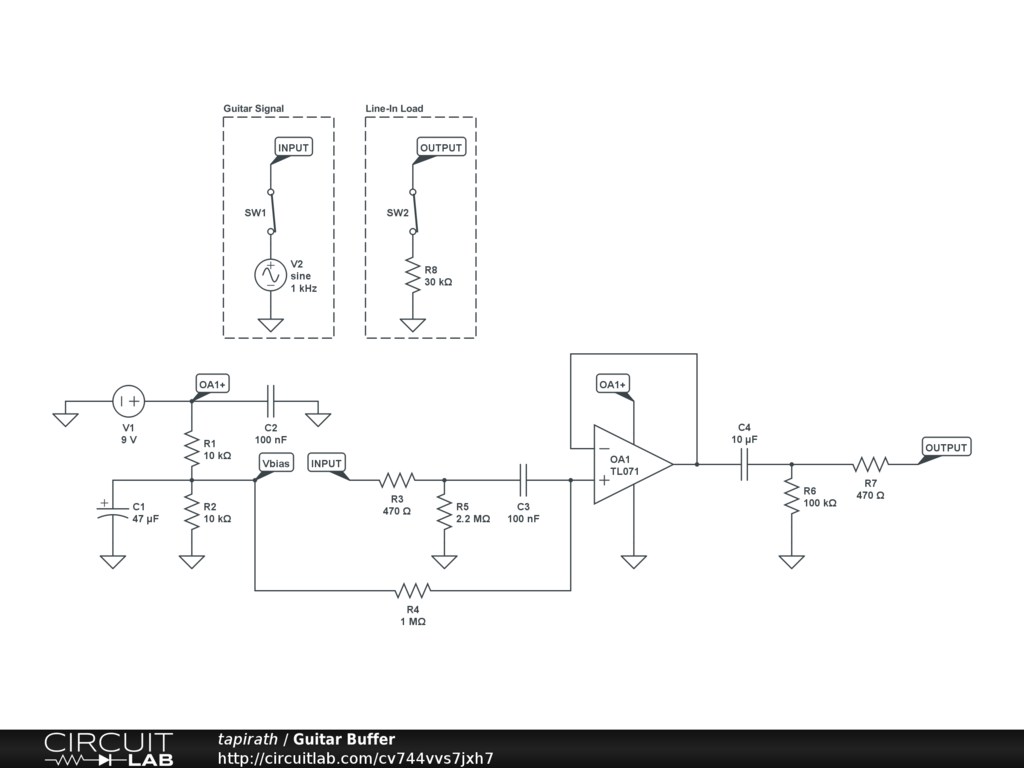

Simple buffer to convert high impedance guitar input to low impedance output (such as line-in on your computer). It's a slightly modified version of Klon Centaur and/or MXR MicroAmp style buffer.
