Not provided.

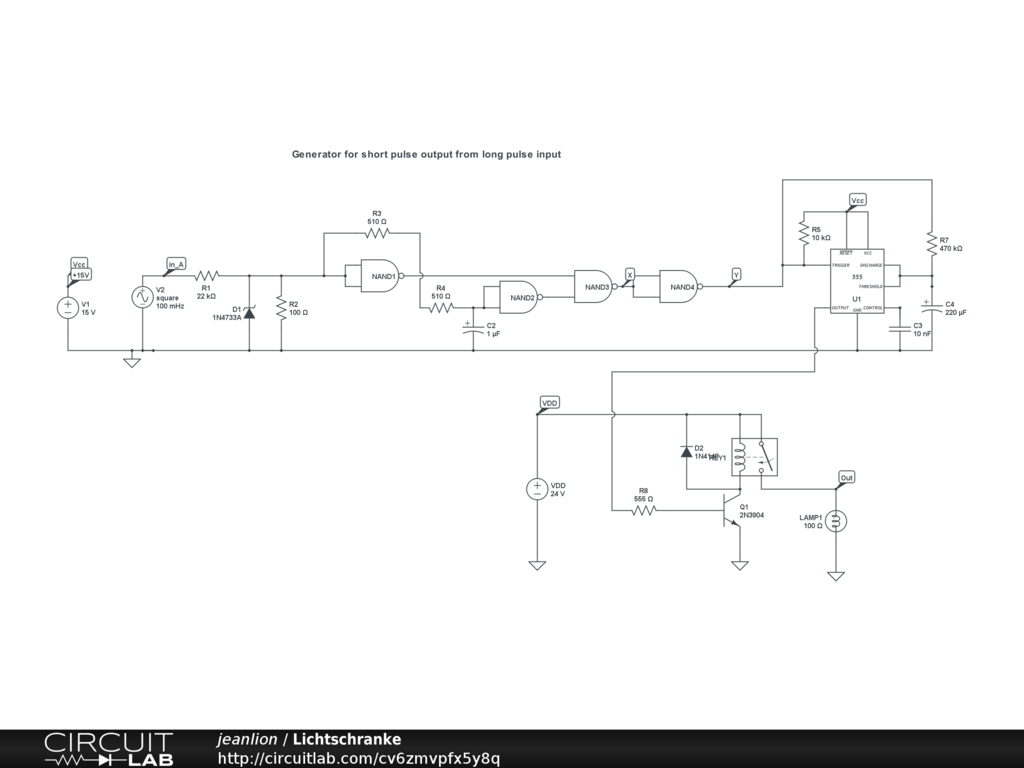

Generates a short pulse at output Y from a long pulse at Input. e.g. input 1-5 s output pulse 100ms
|
I was able to make one step forward by deleting the node "+15V", then the Time-Domain simulation would run. (I have no explanation for this). Then, I increased the simulation time from 3 to 30 seconds. 3 cycles of voltage source V2 appeared. Finally, I looked at the voltages on R2 and C2. The signals are small, probably not enough to switch the NAND gates. Try thinking about the value of R1. Keep experimenting! |
July 03, 2020 |
