snu BJT NPN contoh 0001a PUBLIC

Created by
Created May 22, 2021
Last modified May 22, 2021
Tags bjt   npn   switching   transistor

Summary

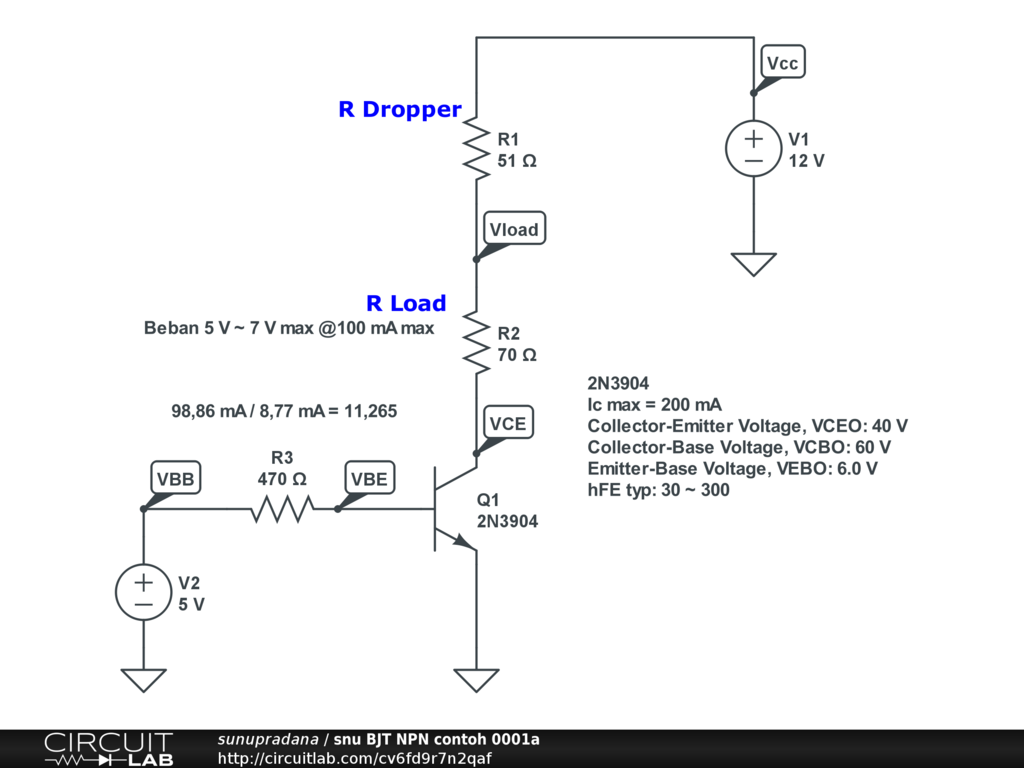

Contoh pengerjaan dasar untuk tugas praktik perancangan rangkaian sakelar elektronik sederhana dengan BJT NPN.
Untuk tahap pertama penting untuk mengacu pada rating beban (load). Kemudian untuk mencari/memeriksa komponen transistor yang sesuai, perlu mengacu pada datasheet.
