kids electric bike brake lights 01

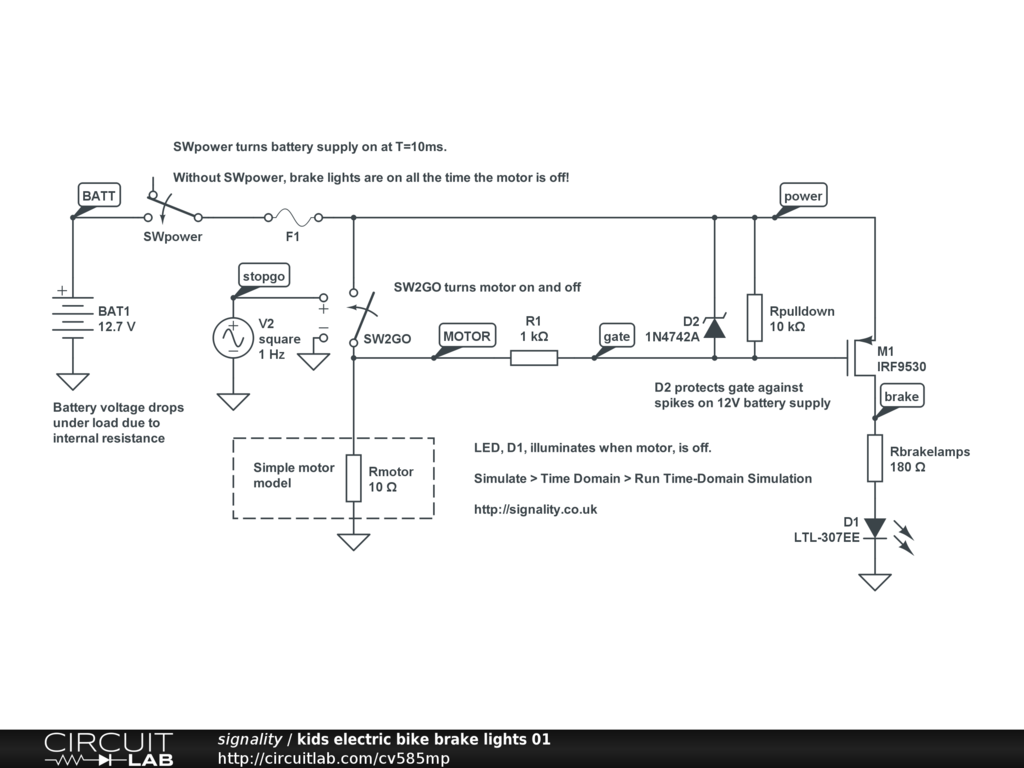

LED, D1, illuminates when motor, is off.

Simulate > Time Domain > Run Time-Domain Simulation

http://signality.co.uk
