Reducción de voltajes para conexión Serie Raspberry PI

Created by	mxgxw
Created	December 15, 2012
Last modified	December 16, 2012
Tags	arduino gpio raspberry-pi serial

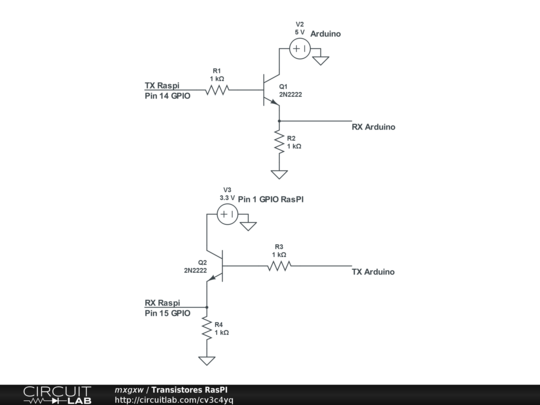

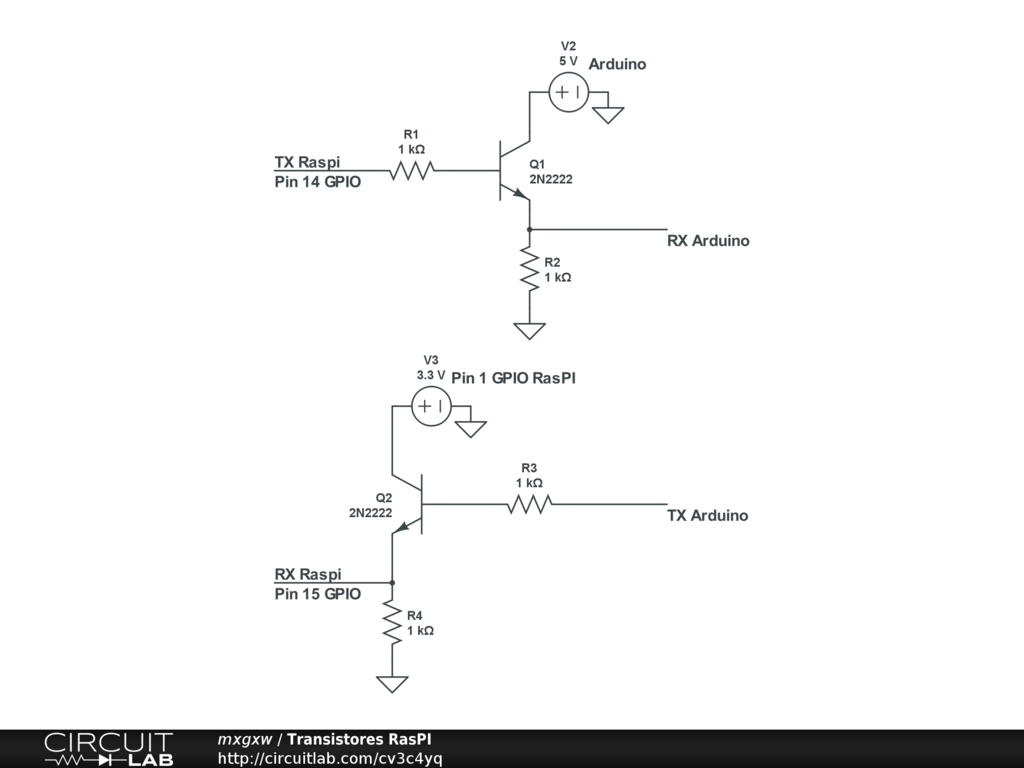

Circuito de reducción de voltajes para interfaz serial GPIO Raspberry PI <-> Arduino Mega
