RMC_2014 Full Circuit with Power PUBLIC

Created by
Created April 11, 2014
Last modified January 30, 2017
Tags No tags.

Summary

Not provided.

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):


CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor


Description

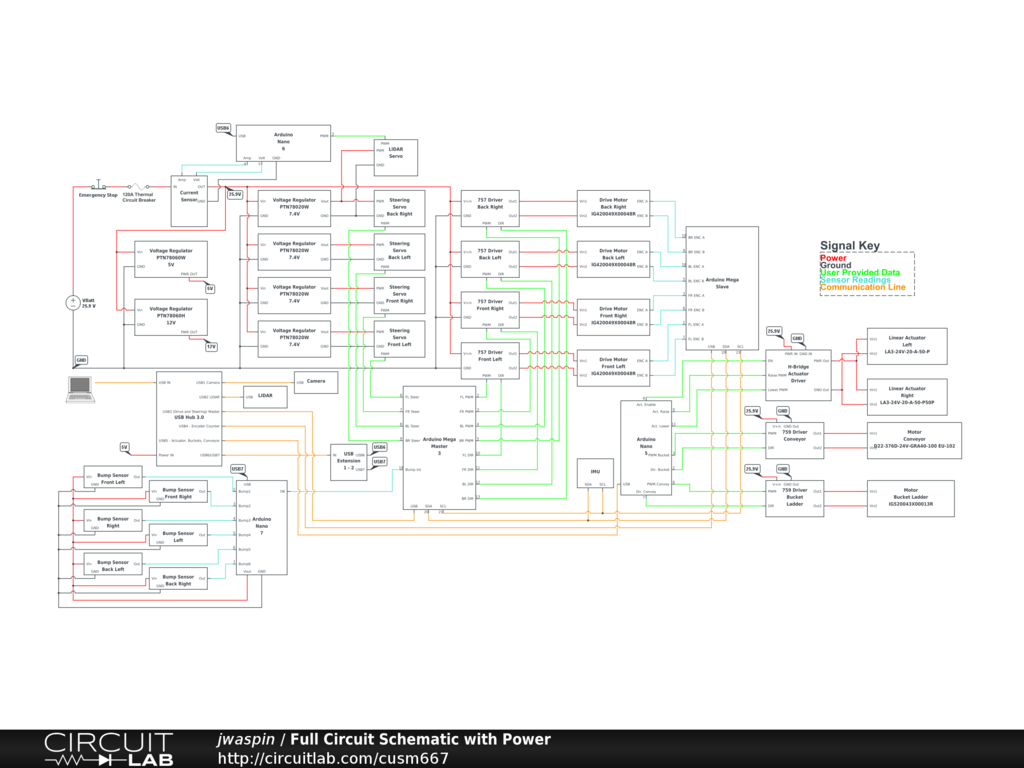

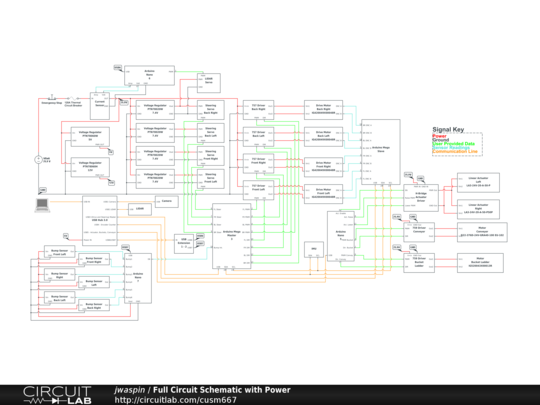

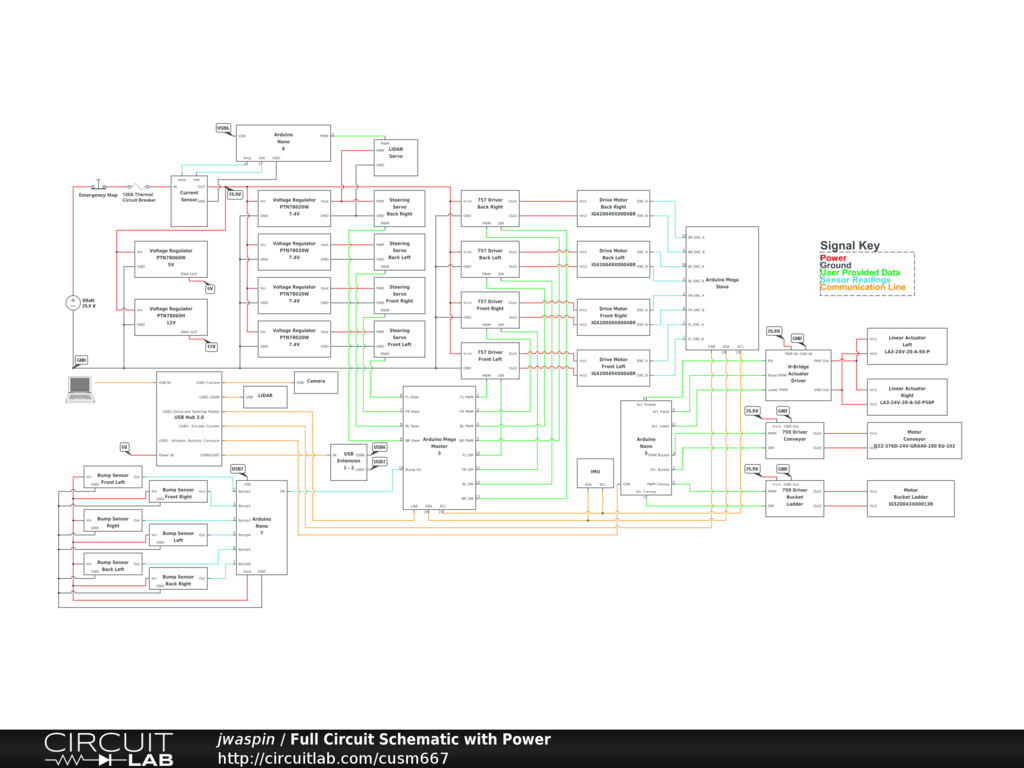

NASA Robotic Mining Competition 2014 Rover Schematic. This is the full schematic, no exclusions.
