Alarm Sensor

Created by	Josh LRT (lrtcoolman)
Created	December 06, 2012
Last modified	December 07, 2012
Tags	alarm alarm-sensor capacitor-alarm professional-alarm sensor sensor-trigger-alarm simple-alarm-design simple-sensor-alarm thyristor trigger-alarm

How it works?
1. The RESET switch is OFF in the Alarm Sensor to operate.

2. Any object that triggered the sensor [SWITCH, push to off] it will charge the capacitor [C1].

3. When the charge at the C1 is enough then it will activate the thyristor and make the buzzer buzz.

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):

CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor

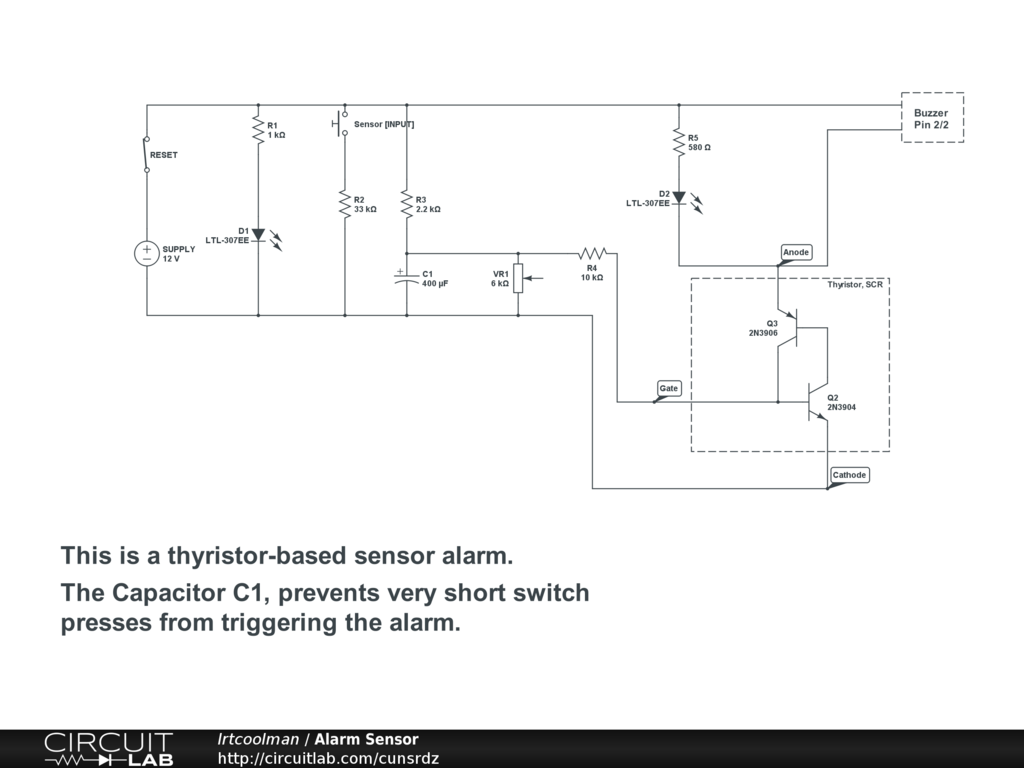

This is a simple thyristor-based sensor alarm.
