| Tags | pulse-width-modulator pwm variable-duty-cycle |

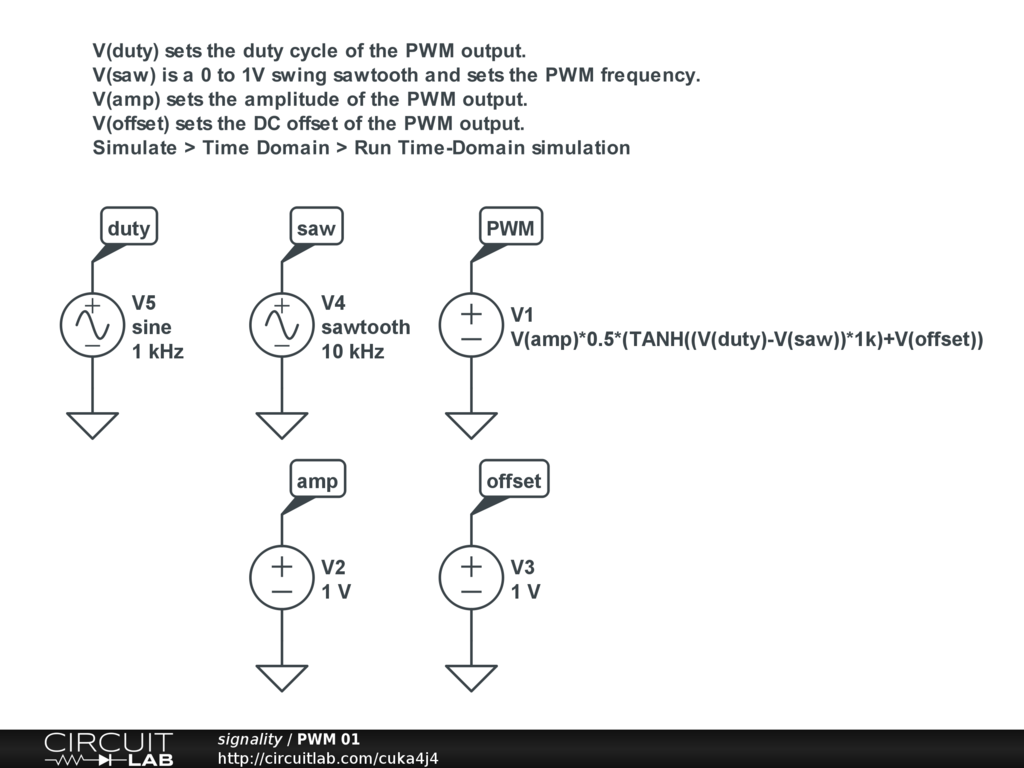

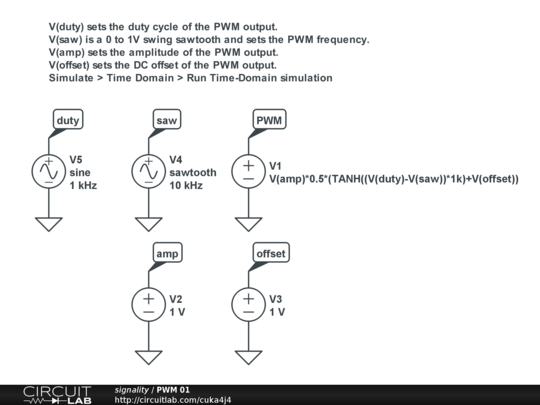

V(duty) sets the duty cycle of the PWM output.
V(saw) is a 0 to 1V swing sawtooth and sets the PWM frequency.
V(amp) sets the amplitude of the PWM output.
V(offset) sets the DC offset of the PWM output.
Simulate > Time Domain > Run Time-Domain simulation
