Differentiator1p2019 PUBLIC

Created by
Created March 28, 2019
Last modified March 28, 2019
Tags No tags.

Summary

Not provided.

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):


CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor


Description

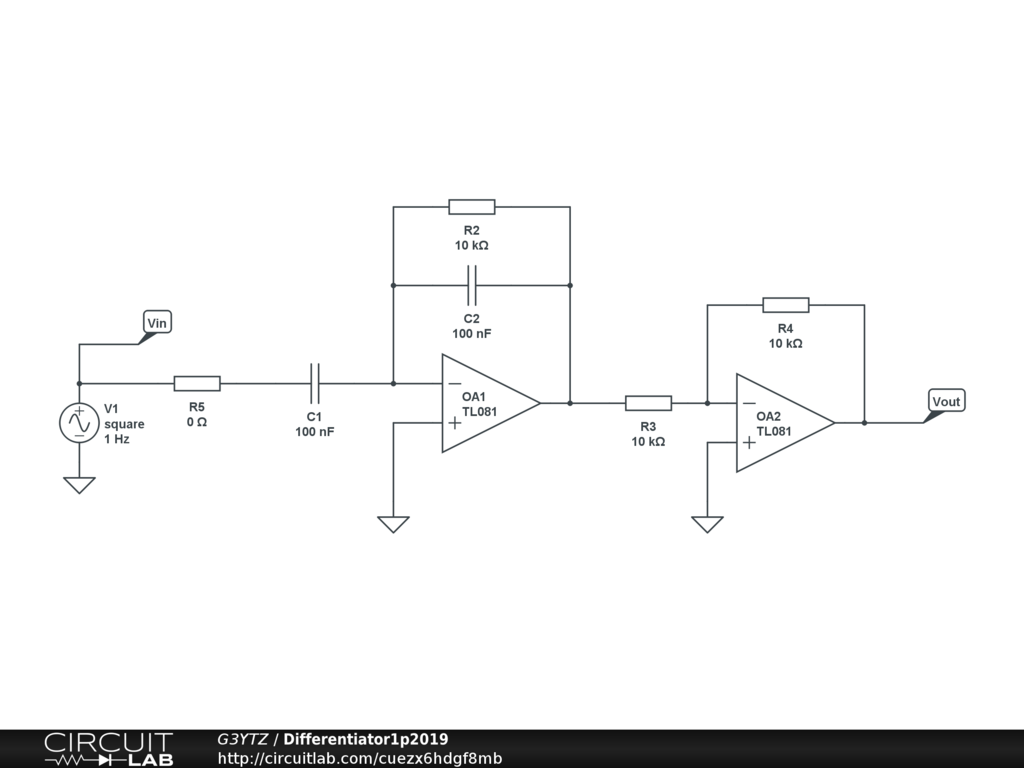

Differentiator circuit with overall positive gain.

Vout/Vin = H(s) = sC2 R1/(1+sC2R2)

Vin =sin(2pif*t) where f=1 Hz so w=2pi =6.282

Vout=6.282 cos(2pit)

Note we can only differentiate when the Bode magnitude slope is +20 db/decade
