Arduino Alarm - Magnetic switch

Created by	pbos
Created	June 23, 2012
Last modified	June 23, 2012
Tags	alarm arduino magnetic-switch

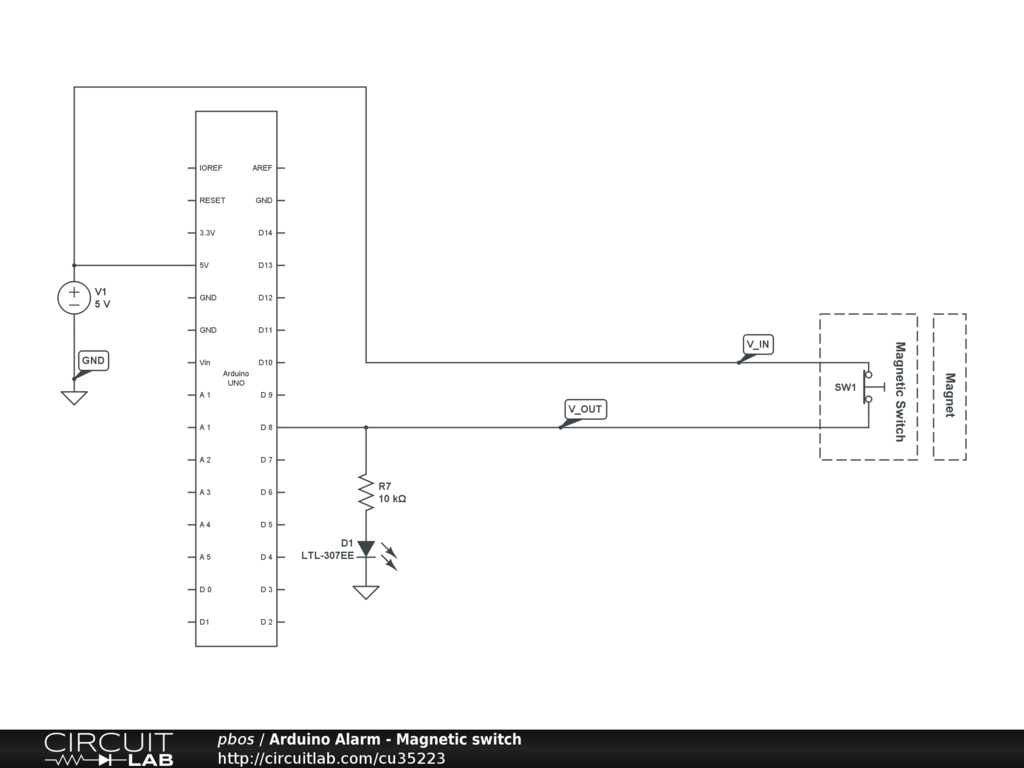

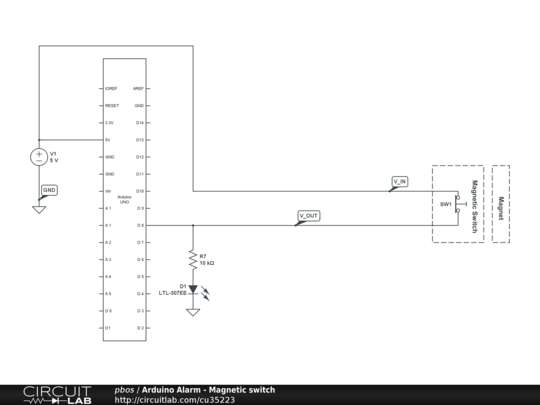

Diagram to indicate how a standard magnetic door or window alarm switch could be connected as an input to an Arduino
The LED circuit is optional
