Current Controlled Voltage Source (CCVS) Example

A Current Controlled Voltage Source (CCVS) has a voltage difference equal to some current elsewhere in the circuit multiplied by a gain.

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):

CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor

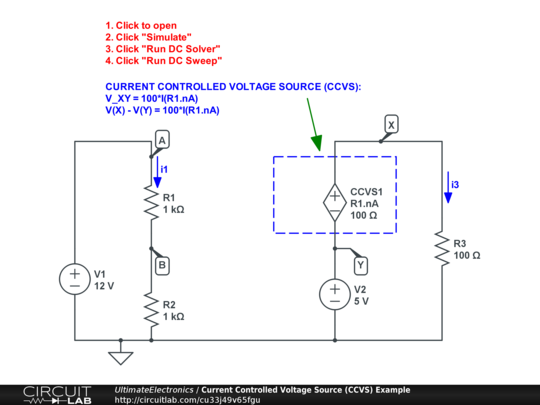

This example is from the Dependent (Controlled) Sources chapter of Ultimate Electronics Book. It shows a DC Sweep simulation where the voltage across the CCVS1 component depends on a current elsewhere in the circuit.

No comments yet. Be the first!

Adding comments has been disabled for this circuit.

Only the circuit's creator can access stored revision history.

Current Controlled Voltage Source (CCVS) Example PUBLIC
