TimedSwitch shorting a resistor PUBLIC

Created by
Created March 06, 2022
Last modified March 06, 2022
Tags No tags.

Summary

Not provided.

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):


CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor


Description

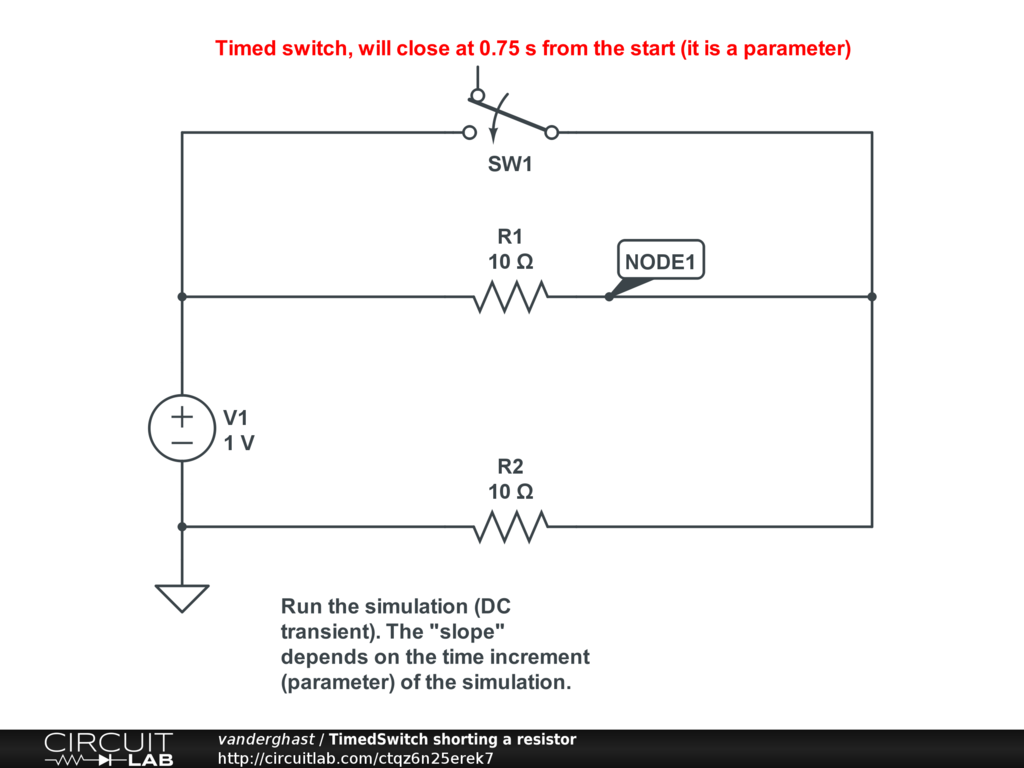

Simple example to simulate shorting a resistor after some time delay. Could use a clock like signal for repeating on-off. Could also use a triangular signal linked to a gate of a MOSFET.
