Joule Thief PUBLIC

Not provided.

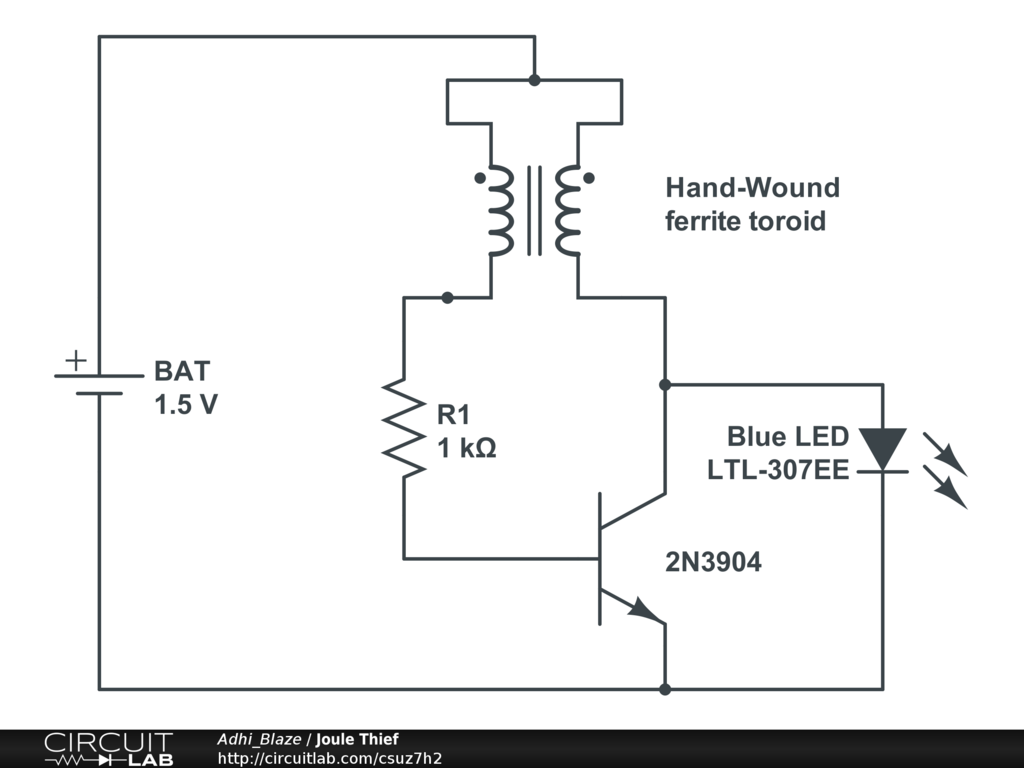

Step-by-step run through of how a Joule Thief circuit works. Includes how all the parts, the 1.5 volt AA battery, the resistor, the transistor and the ferrite core with its two coils of wire work together to build up energy in a magnetic field which then collapses to produce enough voltage and current to light an LED (Light Emitting Diode.) This includes explanations of the feedback that rapidly opens the transistor between base and emitter to open up the emitter to collector too. And also the feedback that slams the transistor shut again.
