Colpitts_01 PUBLIC

Created by
Created March 04, 2012
Last modified March 23, 2012
Tags colpitts

Summary

50MHz colpitts oscillator.

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):


CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor


Description

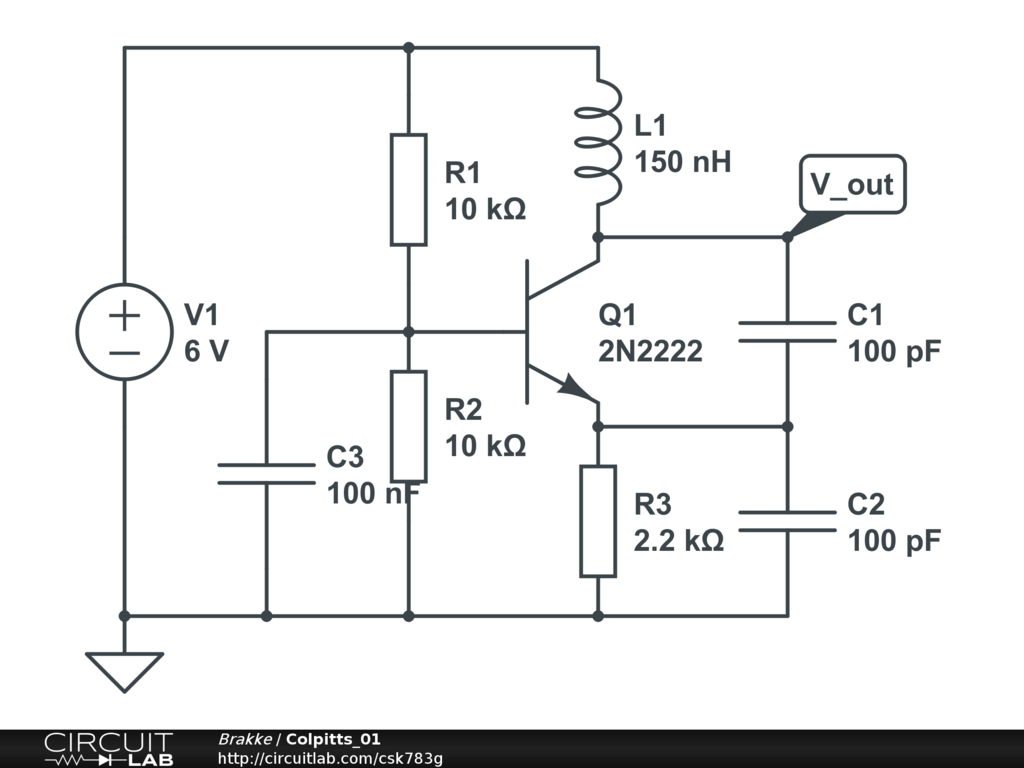

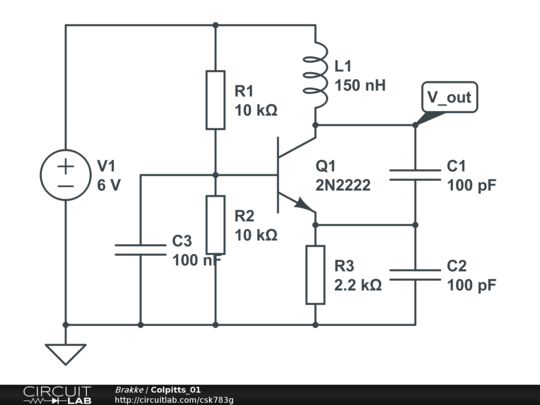

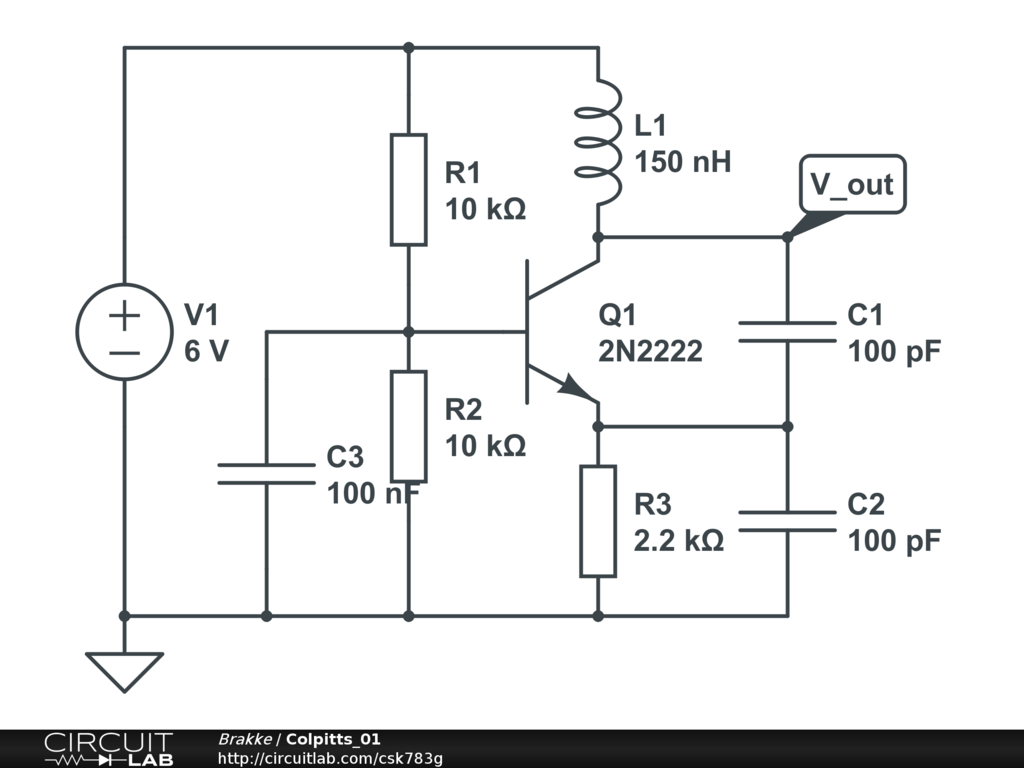

Colpitts oscillator circuit. Component values for 50MHz oscillation, as provided by [Vesa Linja-Aho]

Comments

Thank you for this!
Avatar for dhrovner
by dhrovner
October 11, 2016
