Summary

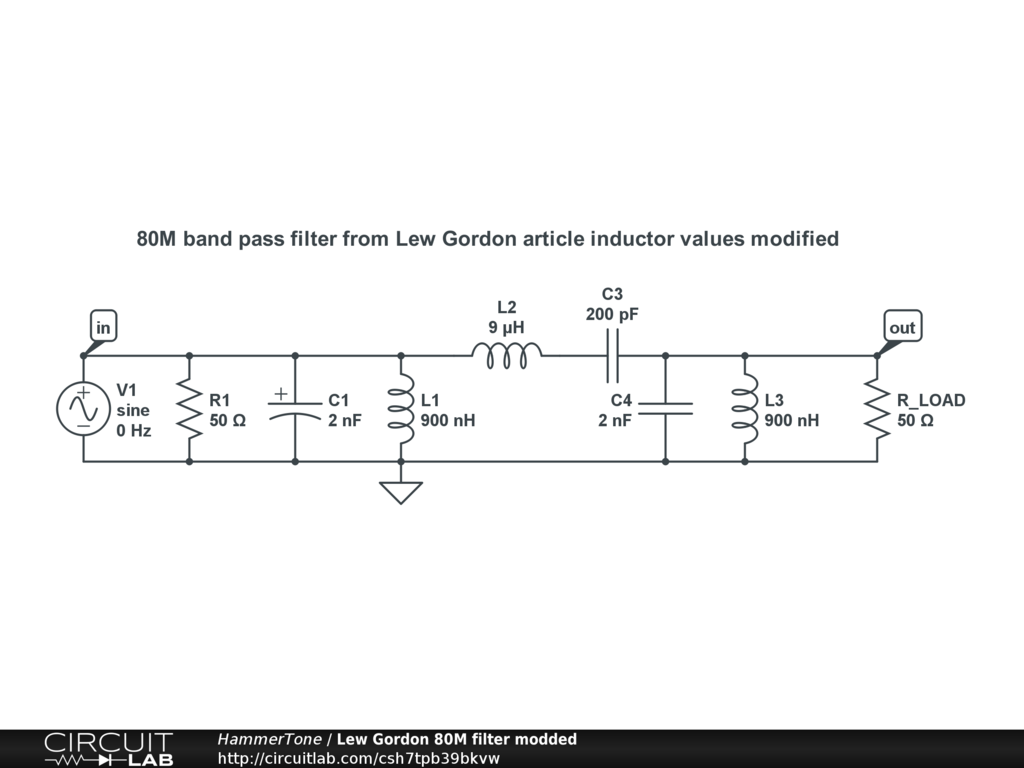

80 meter band pass filter for amateur radio use. Originally described in a article by Lew Gordon K4VX


Description

80 meter band pass filter for HF Amateur Radio use as described in an article by Lew Gordon found online. Inductor values have been modified to more accurately center the passband. BWO empirical testing I've found that the inductor values in the original article are about 10% too high.
