Unnamed Circuit

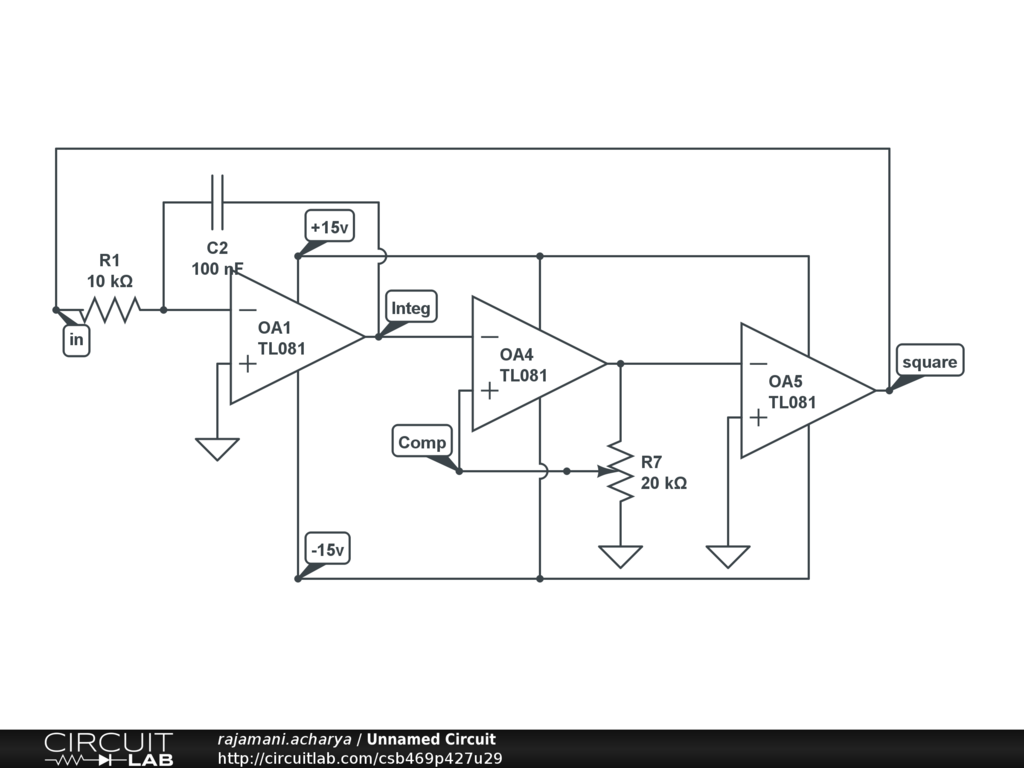

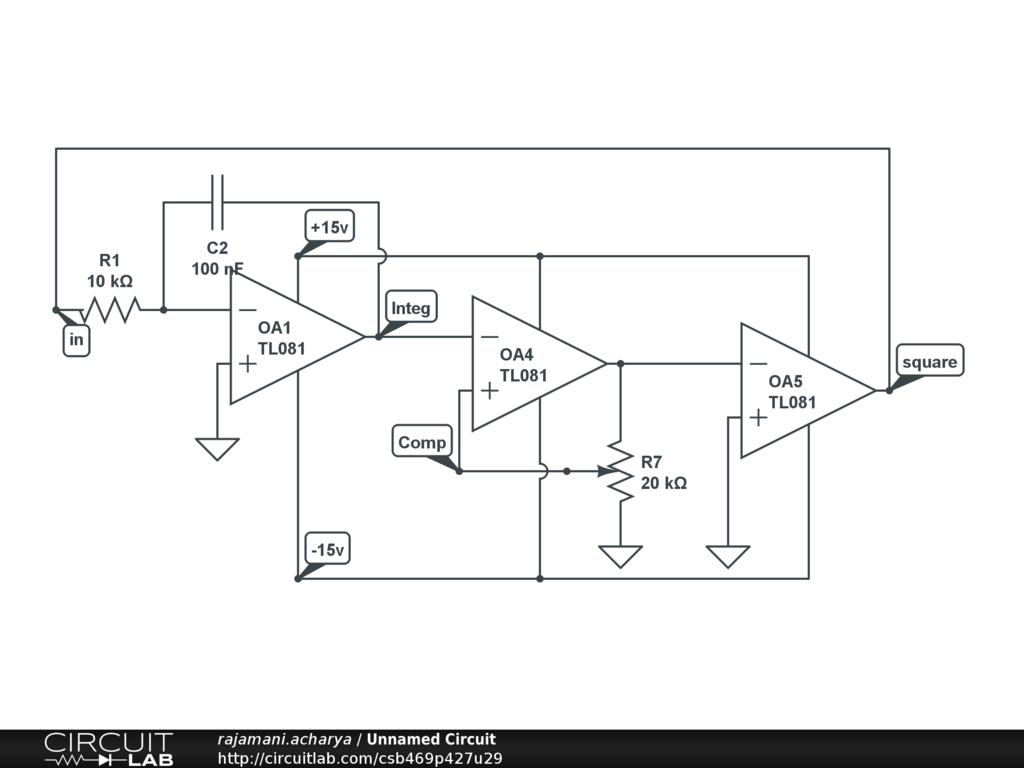

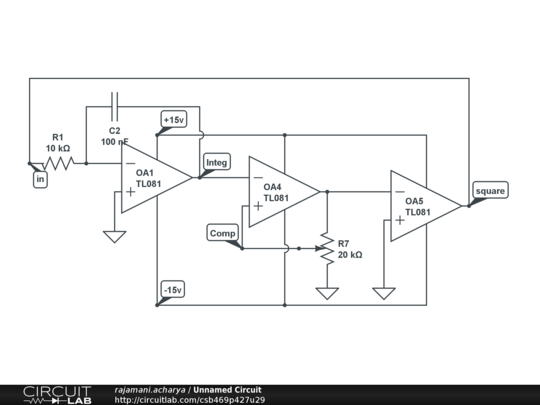

3 x Series connected OpAmps (integrator, comparator and inverter) wired to switch at 50% input voltage. Basic Function Generator
