Motor Driver using MOSFETs

Created by	Nandan Banerjee (banerjen)
Created	February 28, 2012
Last modified	September 30, 2012
Tags	irf530 irf9530 mosfet motor-driver motor-driver-mosfet

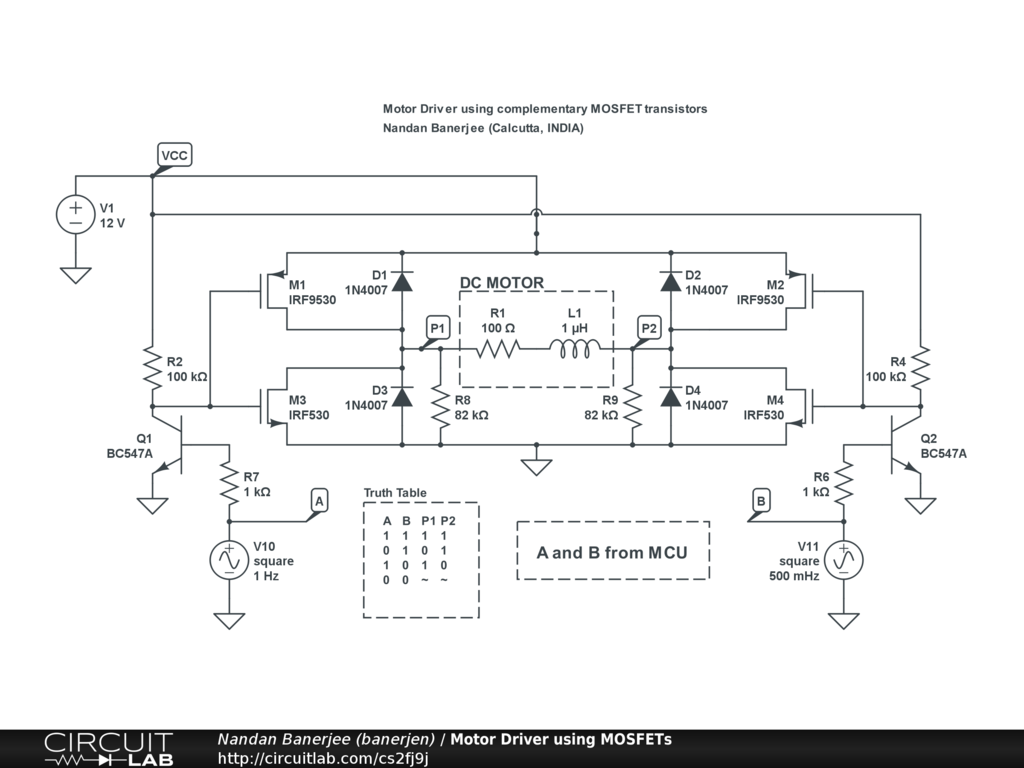

A high power motor driver using two p-channel and two n-channel MOSFET transistors capable of driving up to 33 Amperes at a maximum of 60 Volts.

Copy and paste the appropriate tags to share.

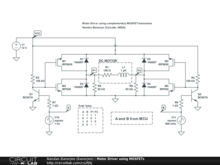

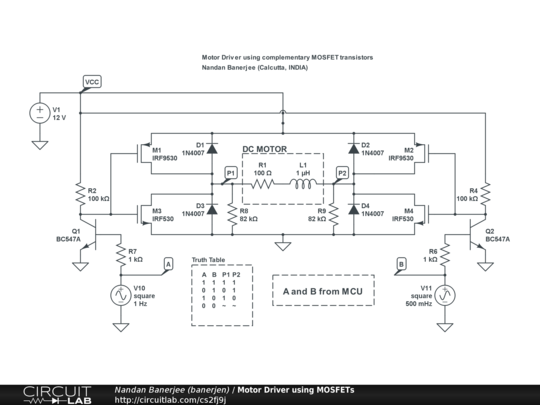

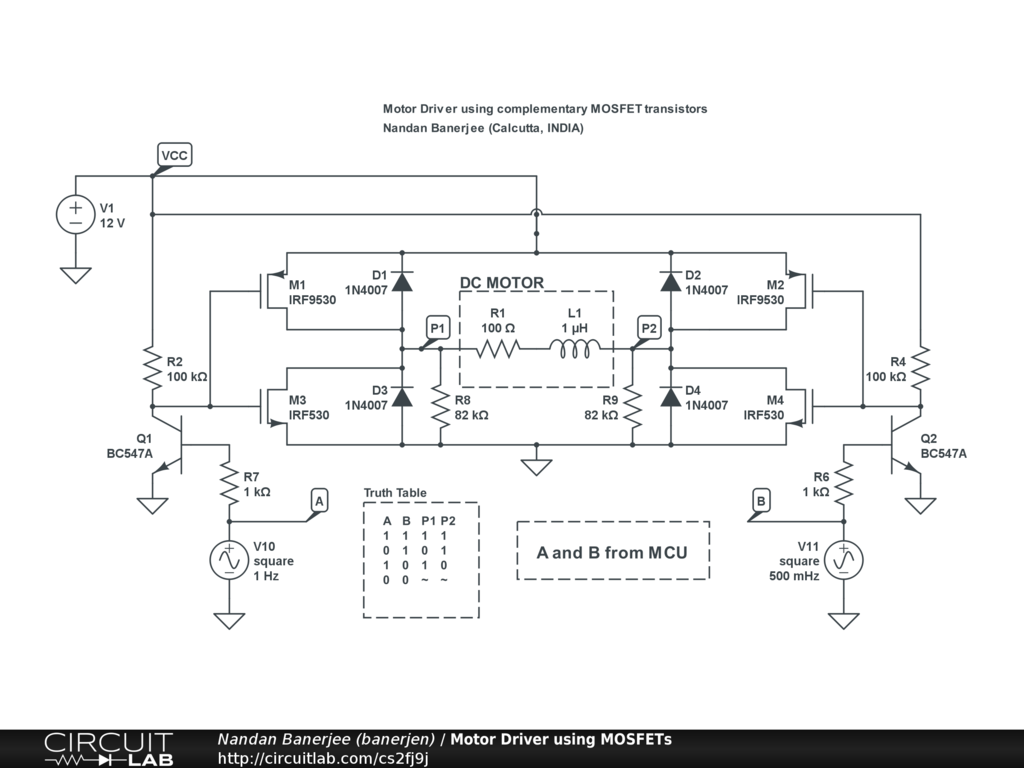

Schematic PNGs: (download or hot-link)
