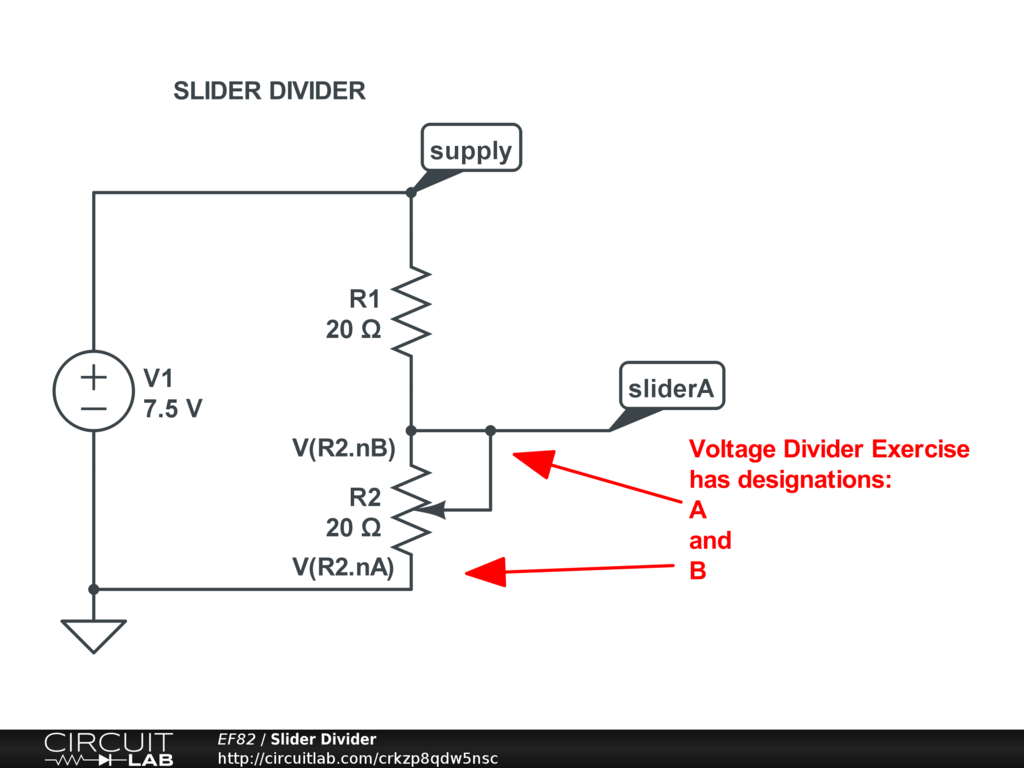

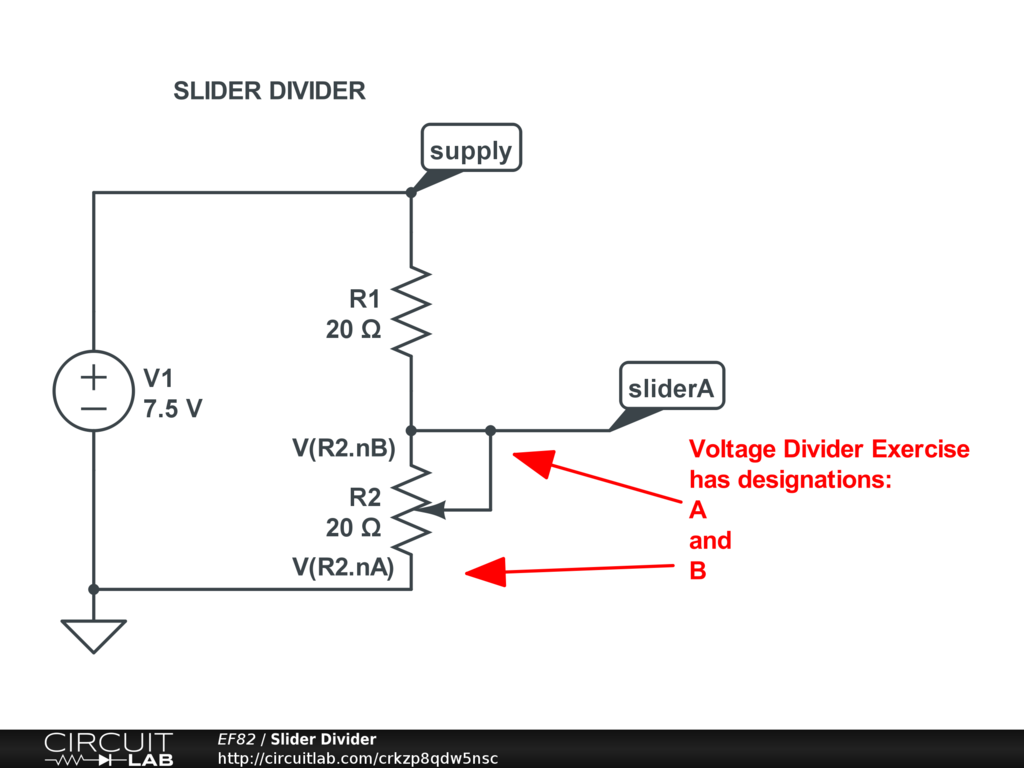

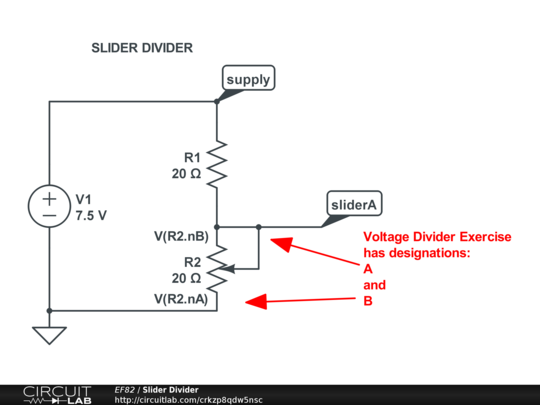

Possible simulation of Voltage Divider Exercise, slider A
Inverted potentiometer R2 allows a DC Sweep of K (0 to 1) to move the slider A "downwards", decreasing the value of R2.
Note R2 "A" and "B" nodes, in relation to the designations in the Voltage Divider Exercise.
