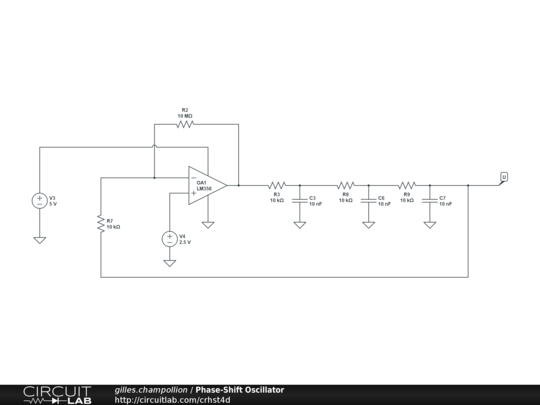

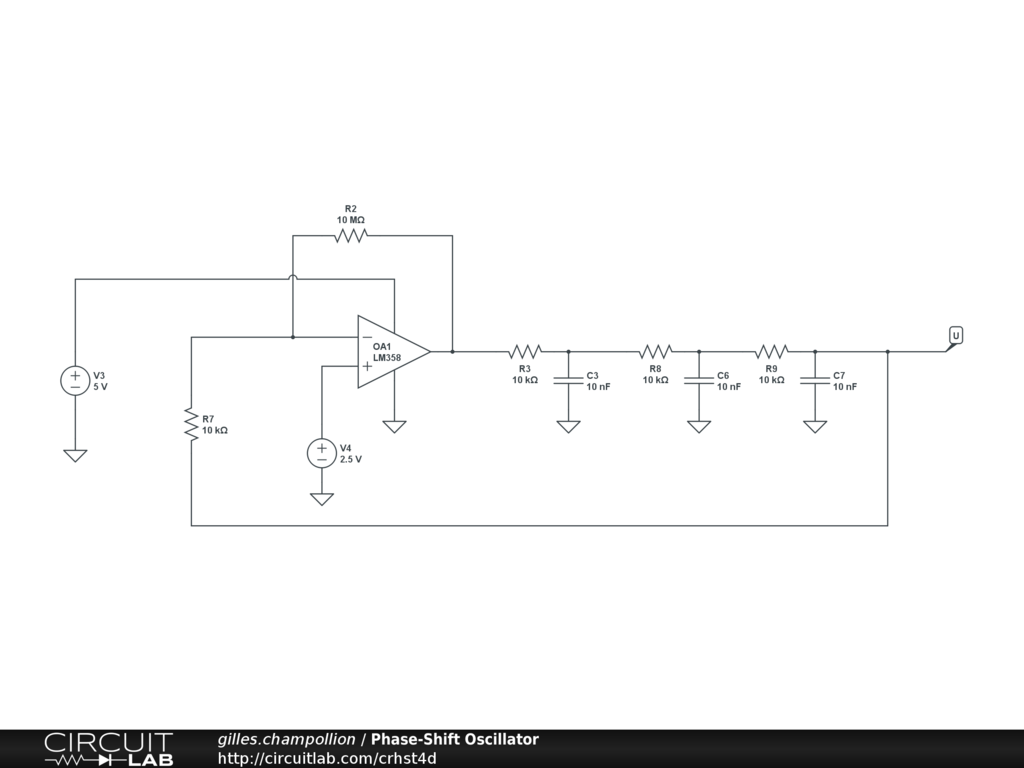

Phase-shift oscillators have less distortion than the Wien bridge oscillator, coupled with good
frequency stability. A phase-shift oscillator can be built with one op amp as shown in Figure
Not provided.
|
I had read that Phase Shift oscillators typically have 1-3% distortion. Whereas Wien Bridge oscillator typically has .01% distortion. "Table 1" http://www.ti.com/lit/an/snoa665b/snoa665b.pdf The web taunts us with this “Super Low Distortion” http://circuits./472 .0018% distortion circuit |
December 27, 2012 |
|
Many thanks Option, but your circuit is much more complex. I will test it soon. |
December 28, 2012 |
|
About my sentece "Phase-shift oscillators have less distortion than the Wien bridge oscillator, coupled with good frequency stability" the source is Par. 8.2 http://www.ti.com/lit/an/sloa060/sloa060.pdf |
December 28, 2012 |
|
Thank you for the link. I will get to reading it. |
December 28, 2012 |
