Guitar Preamp PUBLIC

Created by
Created July 12, 2013
Last modified July 12, 2013
Tags No tags.

Summary

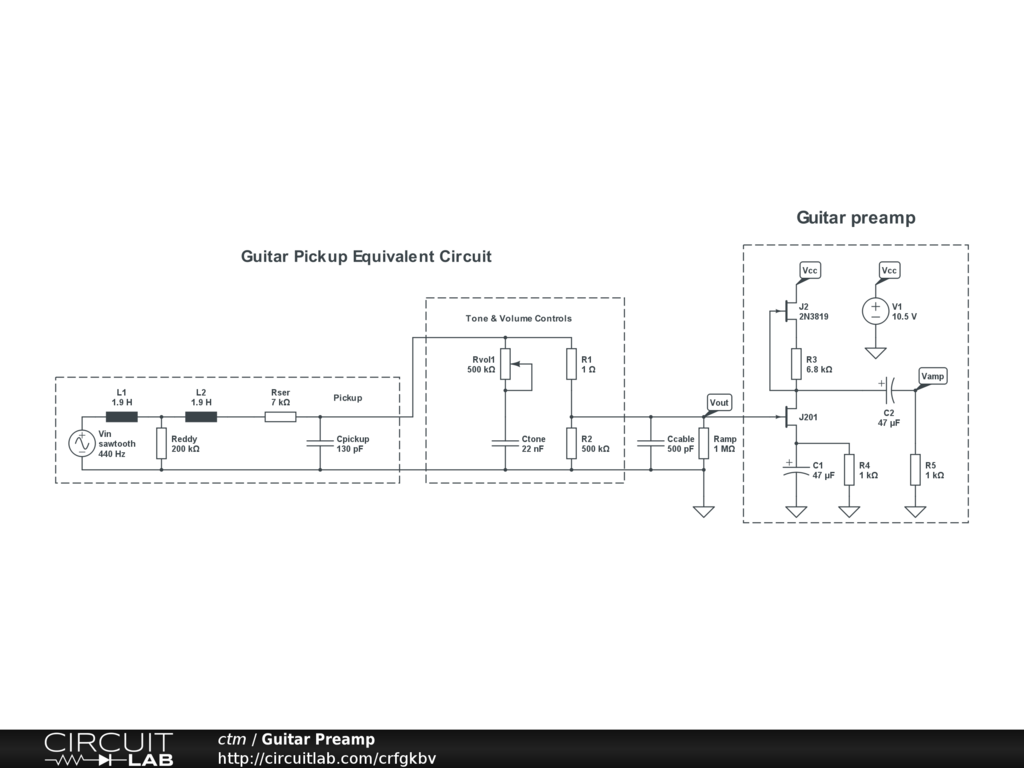

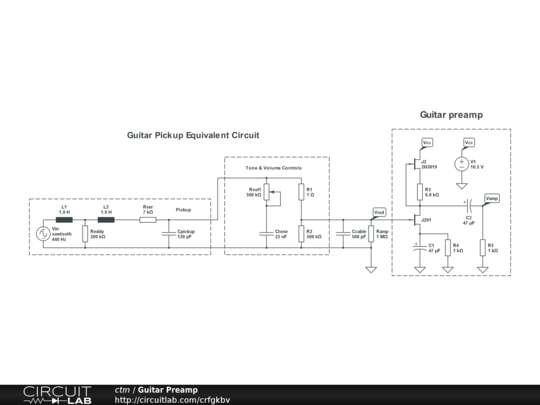

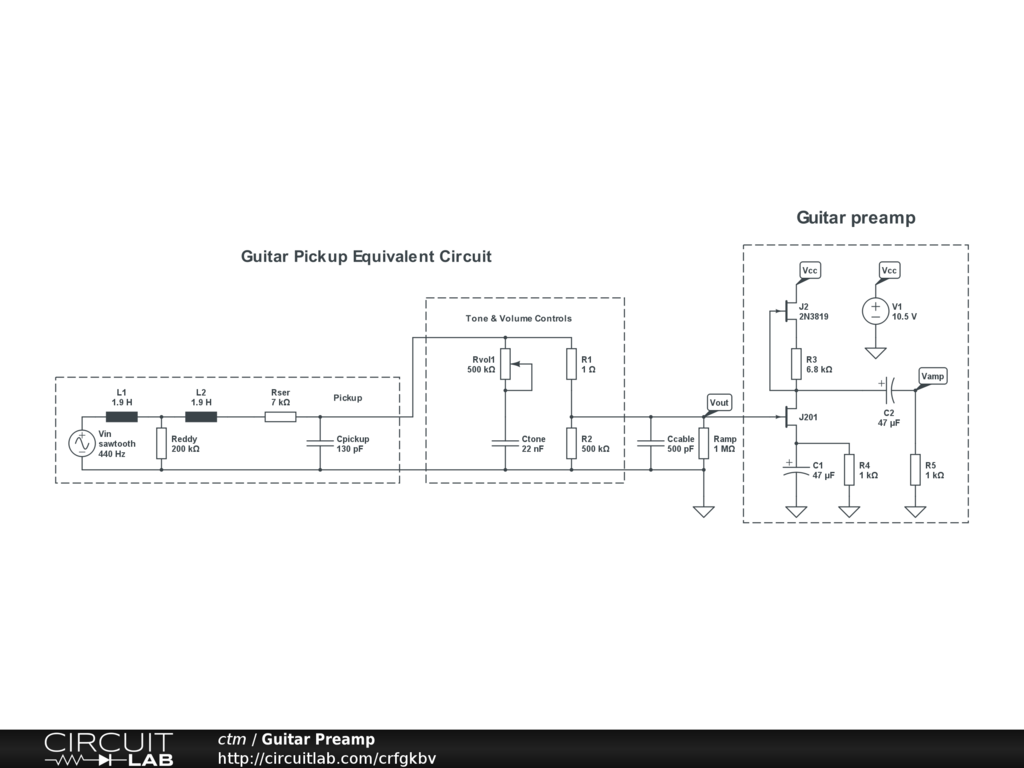

Simple guitar to PC preamp. Built with 2n3918 and BF247 with 9 V battery. Better compnent value suggestion most welcome.

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):


CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor


Description

Tweak the components until the DC on the input side of output capacitor is about 0.5 Vcc.

Not sensitive to supply voltage.
