Current Controlled Current Source (CCCS) Example

A Current Controlled Current Source (CCCS) has a current equal to some other current elsewhere in the circuit multiplied by a gain.

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):

CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor

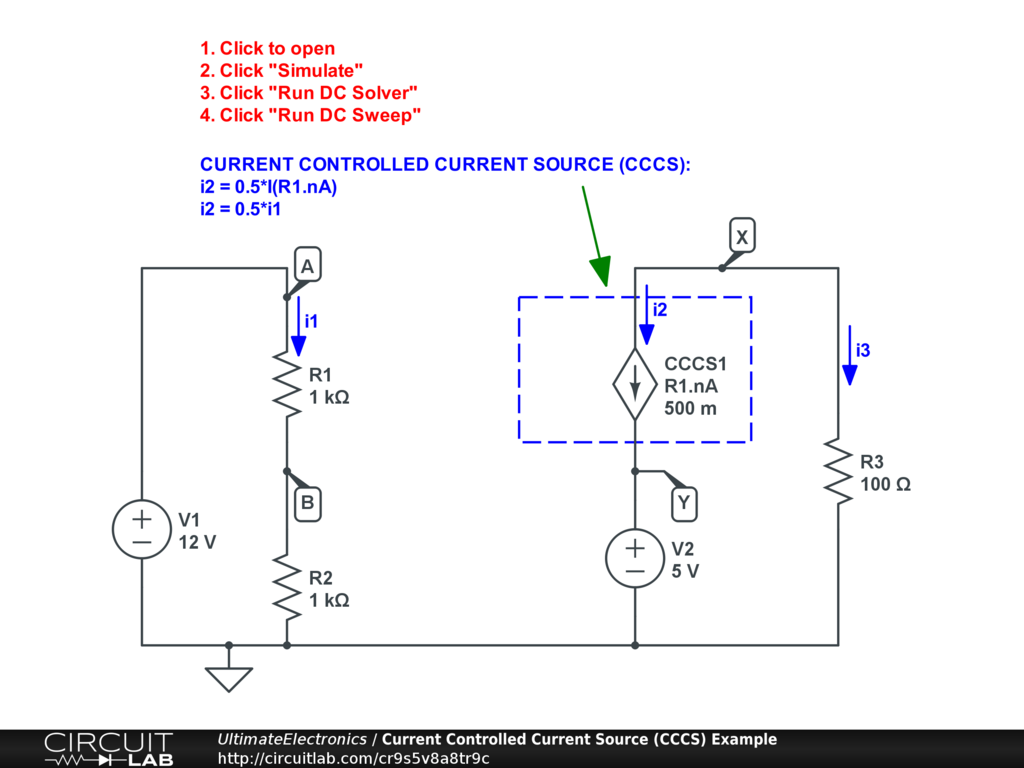

This example is from the Dependent (Controlled) Sources chapter of Ultimate Electronics Book. It shows a DC Sweep simulation where the current through the CCCS1 component depends on a current elsewhere in the circuit.
