LM317 test cct 01

Created by	signality
Created	September 12, 2012
Last modified	November 12, 2012
Tags	lm137 lm317 regulator voltage-regulator

Load regulation of standard CL LM317 & LM137 models is poor.

Simulate > DC Sweep > Run DC Sweep
Simulate > Time Domain > Run Time-Domain Simulation

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):

CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor

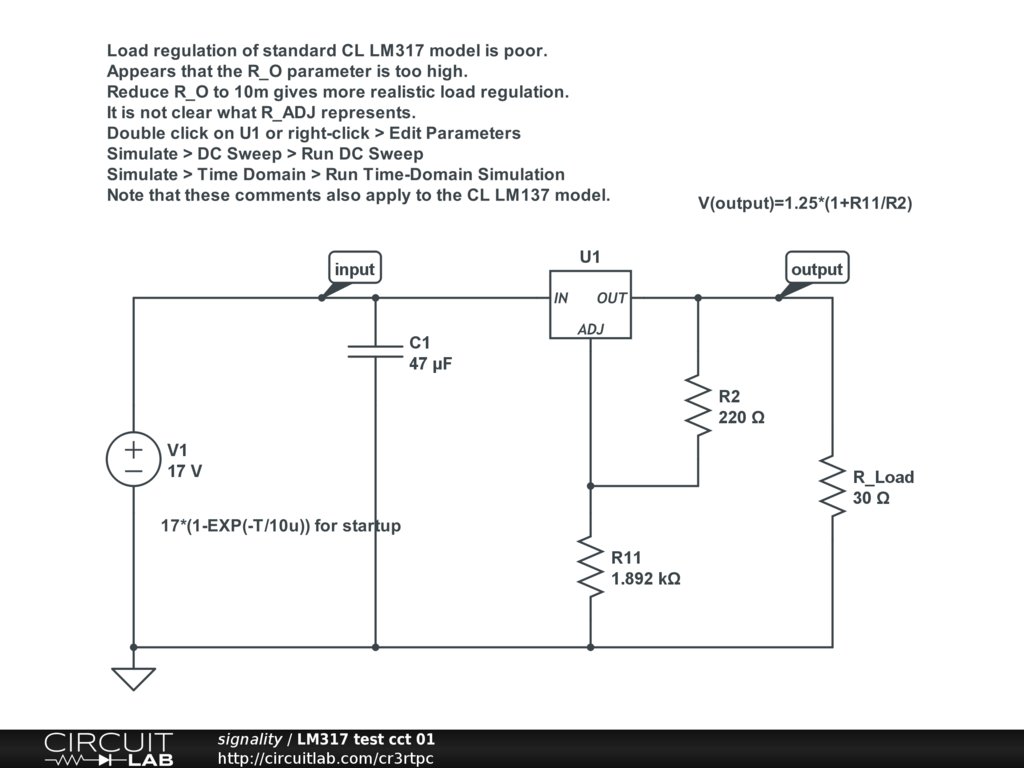

Load regulation of standard CL LM317 model is poor.

Appears that the R_O parameter is too high.

Reduce R_O to 10m gives more realistic load regulation.

It is not clear what R_ADJ represents.

Double click on U1 or right-click > Edit Parameters

Simulate > DC Sweep > Run DC Sweep

Simulate > Time Domain > Run Time-Domain Simulation

Note that these comments also apply to the CL LM137 model.

No comments yet. Be the first!

Only the circuit's creator can access stored revision history.

LM317 test cct 01 PUBLIC
