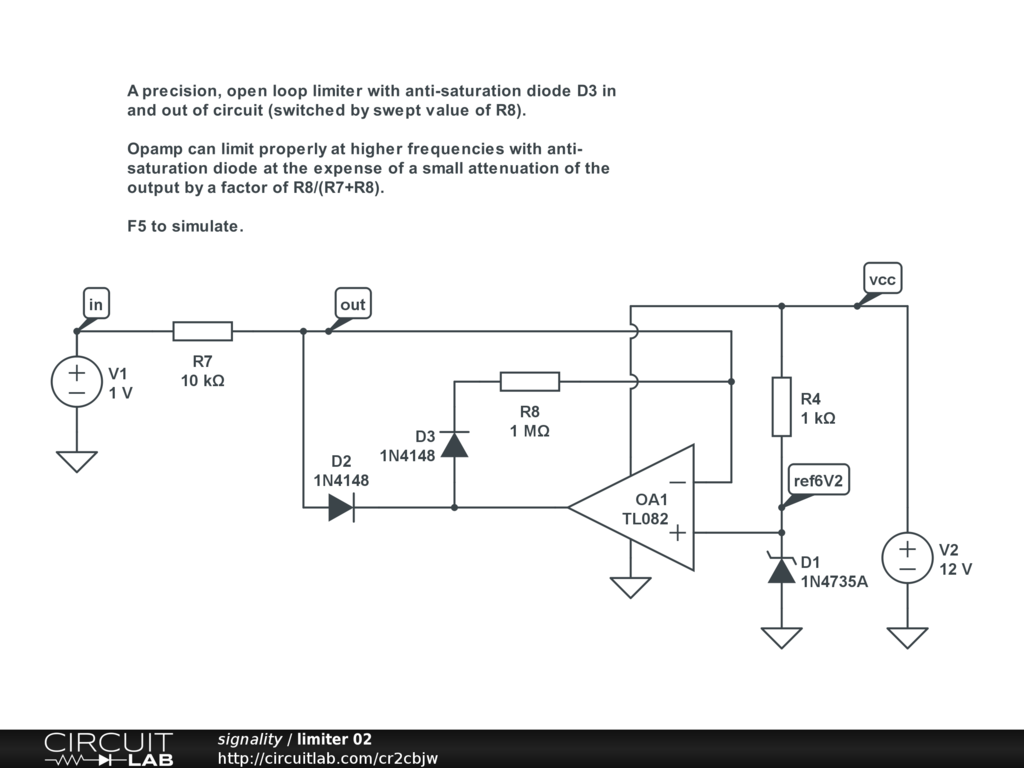

A precision, open loop limiter with anti-saturation diode D3 in
and out of circuit (switched by swept value of R8).
Simulate > DC Sweep > Run DC Sweep
A precision, open loop limiter with anti-saturation diode D3 in and out of circuit (switched by swept value of R8).
Opamp can limit properly at higher frequencies with anti- saturation diode at the expense of a small attenuation of the output by a factor of R8/(R7+R8).
Simulate > DC Sweep > Run DC Sweep
