Function Generator PUBLIC

Created by
Created September 15, 2014
Last modified September 16, 2014
Tags No tags.

Summary

Simple Op-Amp Function Generator

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):


CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor


Description

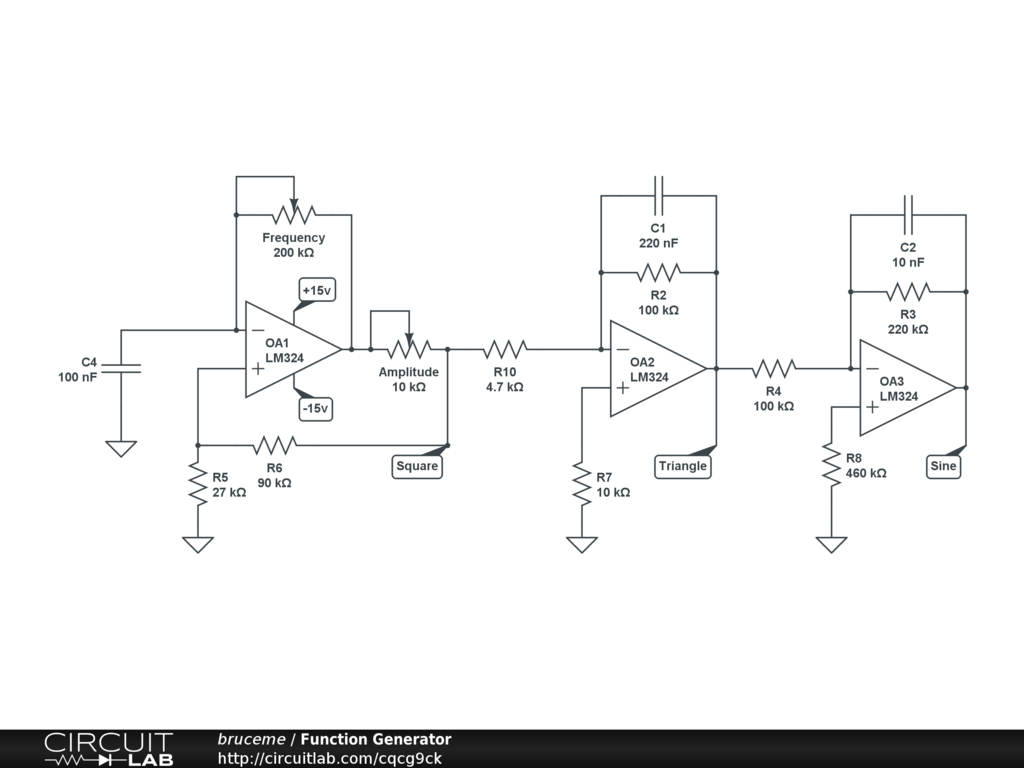

This is a simple op-amp, you can build it easily from a LM324 Quad Op-Amp and a dual power supply.
