Golmar Aux Bell GPIO simulator PUBLIC

Created by
Created January 20, 2022
Last modified January 20, 2022
Tags No tags.

Summary

Not provided.

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):


CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor


Description

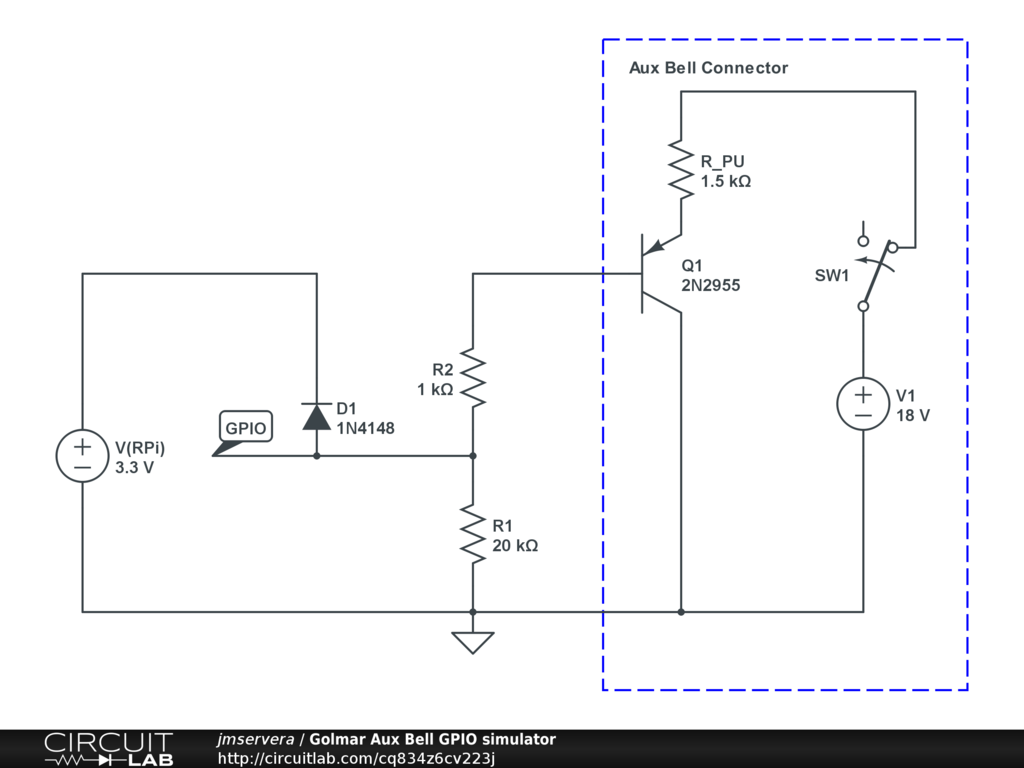

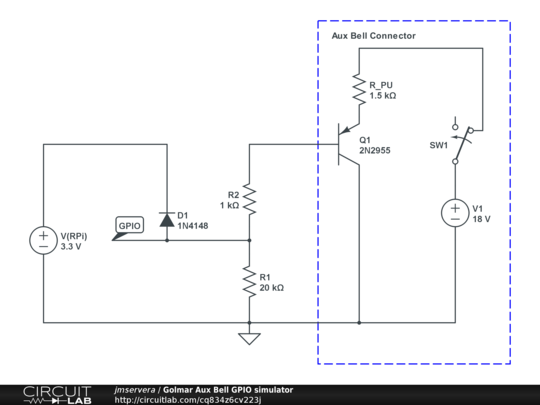

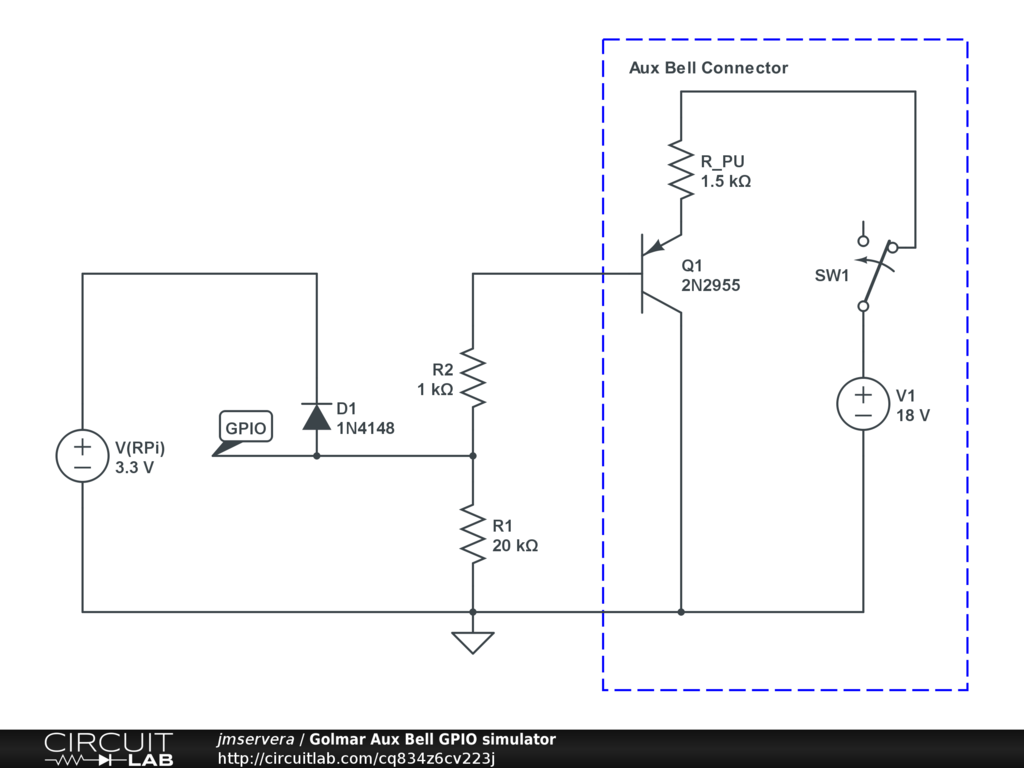

After measuring what is happening in the Tekna Plus SE video doorbell, I assume there's a pull-up resistor for about 1.5K and an unknown transistor that provides an up signal while idle and goes down to 0v three times to indicate a doorbell signal. This circuits simulates it connected to a Raspberry Pi 3.3v GPIO.
